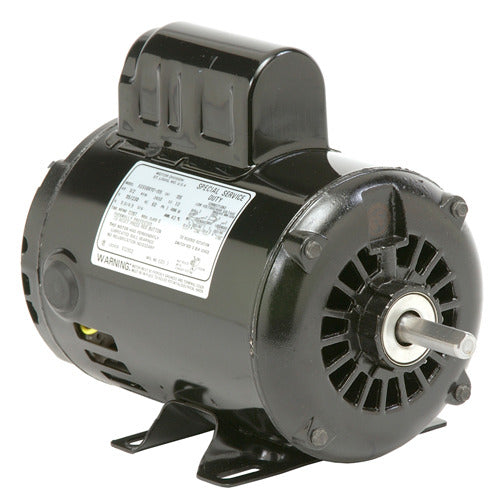

U.S. Motors D12CP2P4 General Purpose Single Phase ODP Rigid Motor

Product Description

The U.S. Motors D12CP2P4 is a general purpose single phase ODP rigid motor designed for a variety of applications. This motor operates effectively at half a horsepower and is rated for 1800 rpm. It features a rigid mount and an open drip proof (ODP) enclosure which is essential for environment-sensitive applications.

• Voltage rating: 115/230 volts
• Service factor of 1.25 for reliable performance
• Constructed with a 48 frame size

Product Highlights

This motor is ideal for use in HVAC systems and other applications requiring dependable, consistent energy output.

Product Information

Standard Information

• Part Number: 112855252
• Brand: U.S. Motors

Technical Specifications

• Voltage Rating: 115/230
• Enclosure Type: ODP
• Full Load RPM: 1725 rpm
• Full Load Amps: 5/2.6
• Poles: 4
• Service Factor: 1.25
• Mounting Type: Rigid
• Frame Size: 48
• C Dimension: 9 inches
• Insulation Class: B
• Duty: Continuous Duty
• Weight: 26.0 lb
• Efficiency: 76.2%
• Frequency: 60 Hz
