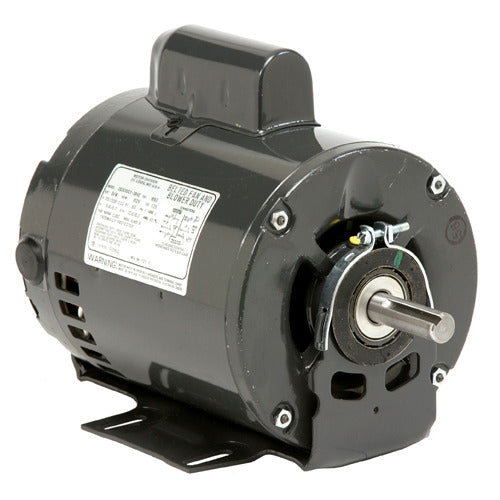

U.S. Motors D12CP1P49 General Purpose Single Phase ODP Resilient Base Motor

Product Description

The U.S. Motors D12CP1P49 is a general-purpose single-phase motor designed for various applications. This motor features a power rating of one half horsepower and operates at a speed of three thousand six hundred RPM. With a versatile voltage rating of one hundred fifteen to two hundred thirty volts, this motor adapts to different electrical setups.

• Open Drip Proof (ODP) enclosure protects internal components
• Resilient base for reliable mounting and installation
• Suitable for continuous duty operation

Product Highlights

This motor is built for general-purpose use, making it ideal for a variety of applications within HVAC, plumbing, and other industrial settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D12CP1P49

Technical Specifications

• Phase: Single Phase
• Service Factor: 1.25
• Full Load Amps: 5/2.5
• Motor Application: General Purpose
• Full Load Efficiency: 72.4 %
• C Dimension: 9.9 inches
• Poles: 2
• Full Load RPM: 3450 RPM
• Enclosure Designation: ODP - Open Drip Proof
• Insulation: B
• RPM: 3600 RPM
• Voltage Rating: 115/230
• Mounting: Resilient Base
• Hz: 60 Hz
• Duty: Continuous Duty
• Frame: 48
• Weight: 19.36 LB
• EAN or UPC: 786382112189
