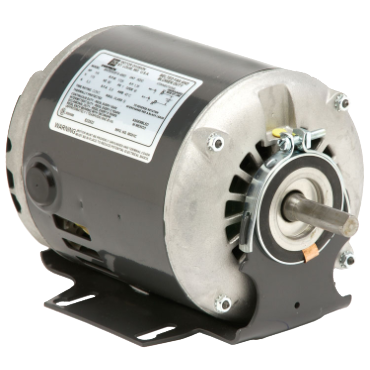

U.S. Motors D12B2NZA9 General Purpose Single Phase ODP Motor

Product Description

The U.S. Motors D12B2NZA9 is a general purpose single phase ODP motor designed for reliable performance in various applications. This motor has a rating of one half horsepower and operates at 1800 rpm. The 115 voltage rating and ODP enclosure make it suitable for numerous environments.

• 1/2 hp power rating
• ODP enclosure for protection against moisture
• Resilient base mounting for easy installation

Product Highlights

This motor is perfect for HVAC applications, fans, and other equipment where a reliable power source is needed.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D12B2NZA9

Technical Specifications

• Horsepower: 1/2
• RPM: 1800
• Voltage Rating: 115
• Phase: Single Phase
• Enclosure: ODP
• Mounting: Resilient Base
• Full Load Amps: 7.74
• Service Factor: 1
• Weight: 18.0 lb
• Frame Size: 56, 56Z
• Poles: 4
• Drive End Bearing: BALL
• Open End Bearing: BALL
• Frequency: 60 Hz
• EAN/UPC: 786382057244
