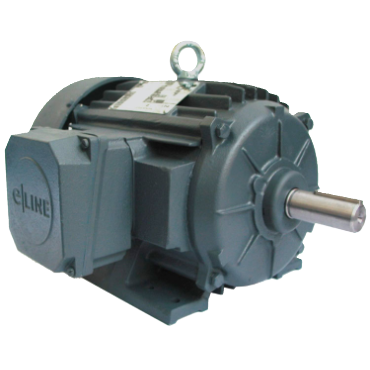

U.S. Motors D125V2C Inverter Vector Duty Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D125V2C is a three-phase inverter vector duty motor designed for efficiency and performance. This motor operates at 125 horsepower and can achieve speeds of 1800 RPM. It features a robust ODP enclosure, suitable for various industrial applications.

• Three-phase power with 125 horsepower
• ODP (Open Drip Proof) design for protection
• Efficient operation with a full load efficiency of 95.4%

Product Highlights

The D125V2C motor is perfect for general-purpose applications that require reliable performance. Its inverter duty capability makes it suitable for variable speed applications, enhancing equipment versatility.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D125V2C

Technical Specifications

• Voltage Rating: 460
• Design: B
• Duty: Continuous Duty
• RPM: 1800
• Open End Bearing: 6203-2Z-J/C3
• Full Load Efficiency: 95.4%
• Enclosure: ODP
• Motor Application: General Purpose, Inverter Vector Duty
• Full Load Amps: 140
• Drive End Bearing: 6207-2Z-J/C3
• Full Load rpm: 1780
• Service Factor: 1.15
• Frame: 405T
• Poles: 4
• Weight: 800 LB
• C Dimension: 34 in
• Mounting: Horizontal Mount, Horizontal - Footed
