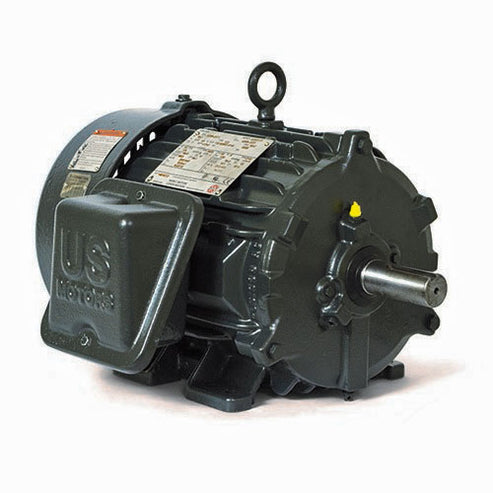

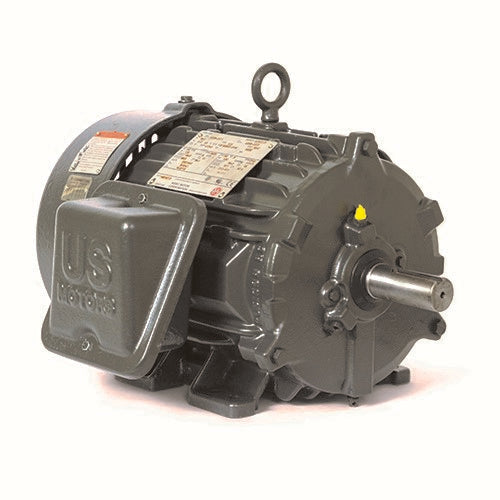

U.S. Motors CD25P1FS Corro-Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors CD25P1FS is a Corro-Duty three-phase TEFC horizontal footed motor. This motor is designed for severe duty applications, making it suitable for challenging environments.

• Rated at twenty-five horsepower
• Operates at three thousand six hundred RPM
• Designed for both 50 and 60 Hz cycles

Product Highlights

This electric motor excels in performance and durability, with a robust construction and a TEFC enclosure for optimal cooling. It can operate at both four hundred and four hundred sixty volts.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 114638170

Technical Specifications

• Mounting: Horizontal - Footed
• RPM: 3600 rpm
• Motor Application: Severe Duty
• Frame Material: Cast Iron
• Phase: Three Phase
• Hz: 50/60 Hz
• Full Load Efficiency: 91.7 %
• Duty: Continuous Duty
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Voltage Rating: 460 & 400
• Insulation: F
• Frame: 284TS
• Full Load Amps: 28.8
• C Dimension: 26.2 in
• Service Factor: 1.15
• Poles: 2
• Weight: 330.0 LB
• EAN or UPC: 786382120627
