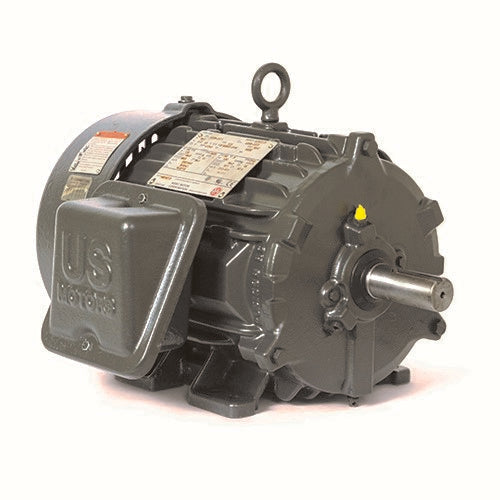

U.S. Motors CD15P2E Corro-Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors CD15P2E is a Corro-Duty three-phase TEFC horizontal footed motor. It is designed for severe duty applications with a power of fifteen horsepower and operates at one thousand eight hundred RPM. This motor is suitable for various industrial tasks requiring continuous performance.

• 15 horsepower rated
• Continuous duty performance
• TEFC (Totally Enclosed Fan Cooled) design

Product Highlights

This motor excels in environments that demand durability and reliability, ensuring effective operation for HVAC systems, pumps, and other heavy-duty machinery.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: CD15P2E

Technical Specifications

• Poles: 4
• Frequency: 50/60 Hz
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Phase: Three Phase
• RPM: 1800
• Service Factor: 1.15
• Duty: Continuous Duty
• Insulation: F
• Full Load Amps: 40-36/18
• Frame: 254T
• Voltage Rating: 230/460 & 200/400
• Full Load Efficiency: 92.4%
• Frame Material: Cast Iron
• Full Load RPM: 1470, 1775
• Mounting: Horizontal - Footed
• Motor Application: Severe Duty
• Weight: 300 LB
• EAN or UPC: 786382121280
