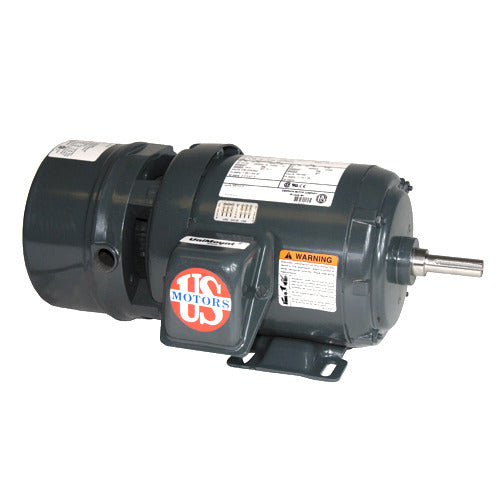

U.S. Motors BMU2P2DCR Brake Motor Three Phase TEFC Horizontal - Footless Motor

Product Description

The U.S. Motors BMU2P2DCR is a brake motor designed for three-phase applications. It operates at two horsepower and has a rated speed of one thousand eight hundred rpm. This motor features a horizontal, footless mounting design ideal for space-saving installations.

• Suitable for continuous duty applications
• TEFC (Totally Enclosed Fan Cooled) enclosure for enhanced durability
• Compatible with multiple voltage ratings: 208-230/460 and 190/380

Product Highlights

The BMU2P2DCR is engineered for reliability in demanding environments. Ideal for industrial settings requiring consistent power delivery and durability.

Product Information

Standard Information

• Part Number: 113631414
• Brand: U.S. Motors

Technical Specifications

• Mounting: Horizontal - Footless
• Motor Application: Brake Motor
• Full Load RPM: 1800 RPM
• Voltage Rating: 208-230/460 & 190/380
• Full Load Amps: 5.9-5.7/2.8
• Enclosure Designation: TEFC
• Frame Size: 145TC
• Service Factor: 1.25
• Full Load Efficiency: 86.5%
• Weight: 35.0 LB
• EAN: 786382118563
