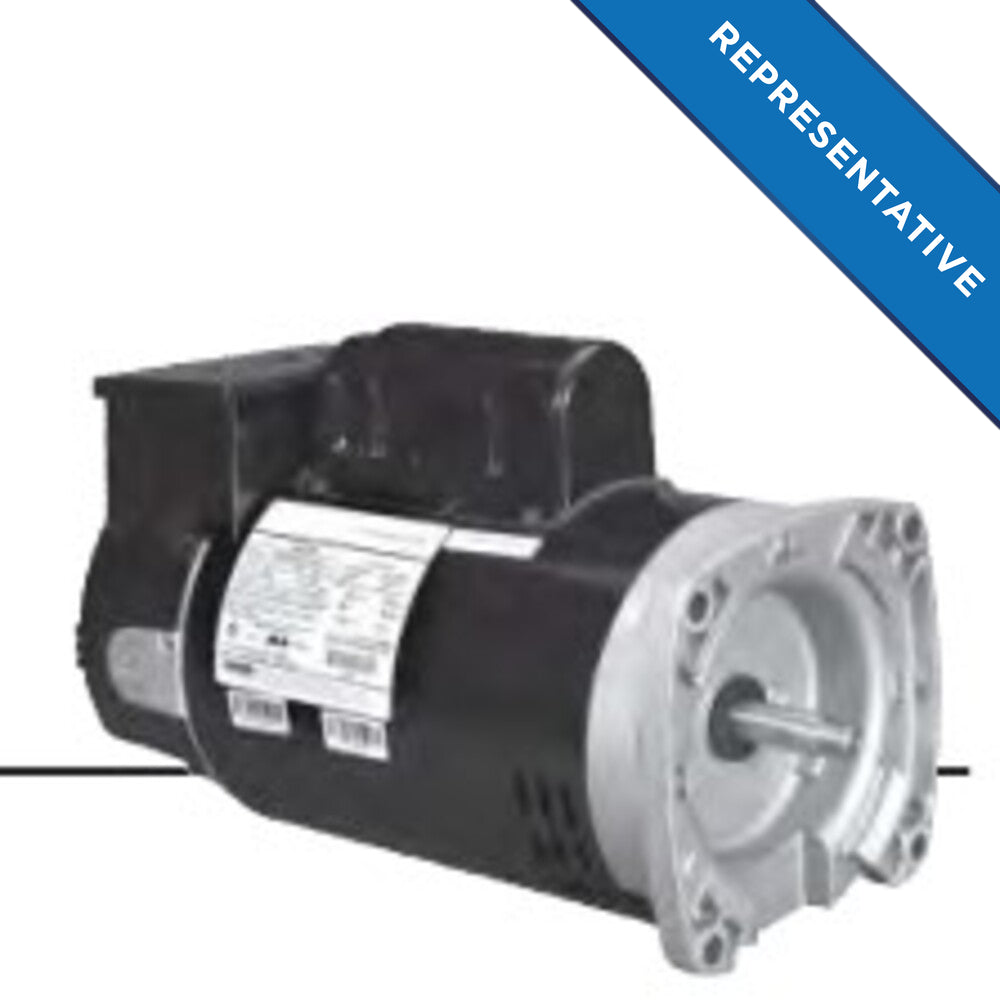

U.S. Motors ASQ225H Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors ASQ225H is a definite purpose single phase ODP square flange motor designed for various applications. This motor offers a power output of two and one-fourth horsepower with a speed rating of three thousand six hundred RPM. It operates at a voltage of two hundred thirty volts and features a square flange mount for easy installation.

• Designed for continuous duty applications
• Open drip proof (ODP) enclosure for reliable performance
• Automatic reset thermal protection for safety

Product Highlights

This motor is suitable for various uses in HVAC systems and equipment that require robust performance under demanding conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 113631409

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Phase: Single
• Hz: 60
• Motor Application: Definite Purpose
• Voltage Rating: 230
• Full Load RPM: 3450
• Duty: Continuous Duty
• Mounting: Square Flange
• Frame: 48Y
• Insulation: B
• Weight: 28.0 LB
