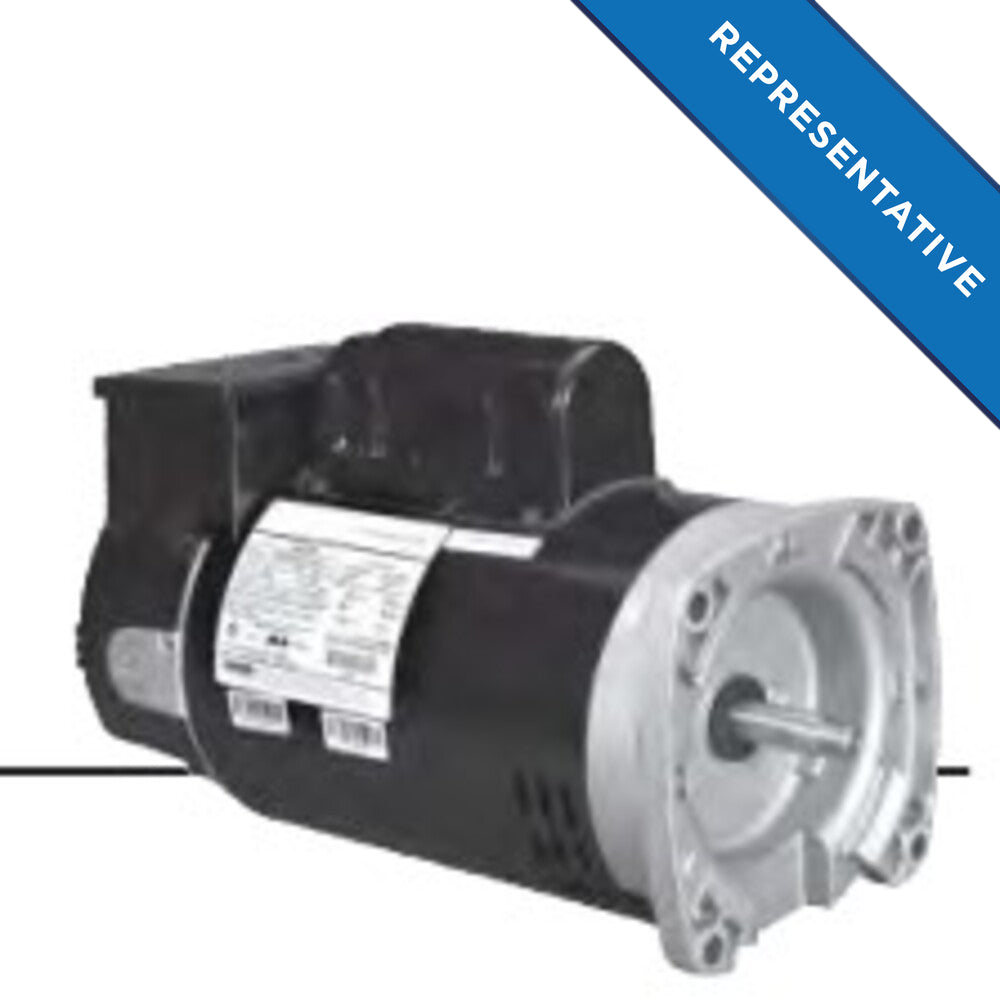

U.S. Motors ASQ065 Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors ASQ065 is a definite purpose single-phase ODP square flange motor designed for reliable performance in various applications. This motor operates at 0.65 horsepower and delivers a high speed of 3600 rpm.

• Voltage Rating: 230/115 volts
• Mounting: Square flange
• Enclosure Type: Open drip-proof (ODP)

Product Highlights

This motor is built for continuous duty and is suitable for various tasks including pool and spa applications. The ASQ065 features a robust design to withstand operational demands.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ASQ065

Technical Specifications

• Insulation Class: B
• Motor Application: Definite Purpose
• Enclosure Designation: ODP - Open Drip Proof
• Mounting Design: Square Flange
• Full Load Amps: 4.1/8.2
• C Dimension: twelve and one half inches
• Phase: Single Phase
• Frame Size: 48Y
• RPM: 3600
• Frequency: 60 Hz
• Weight: fifteen pounds
