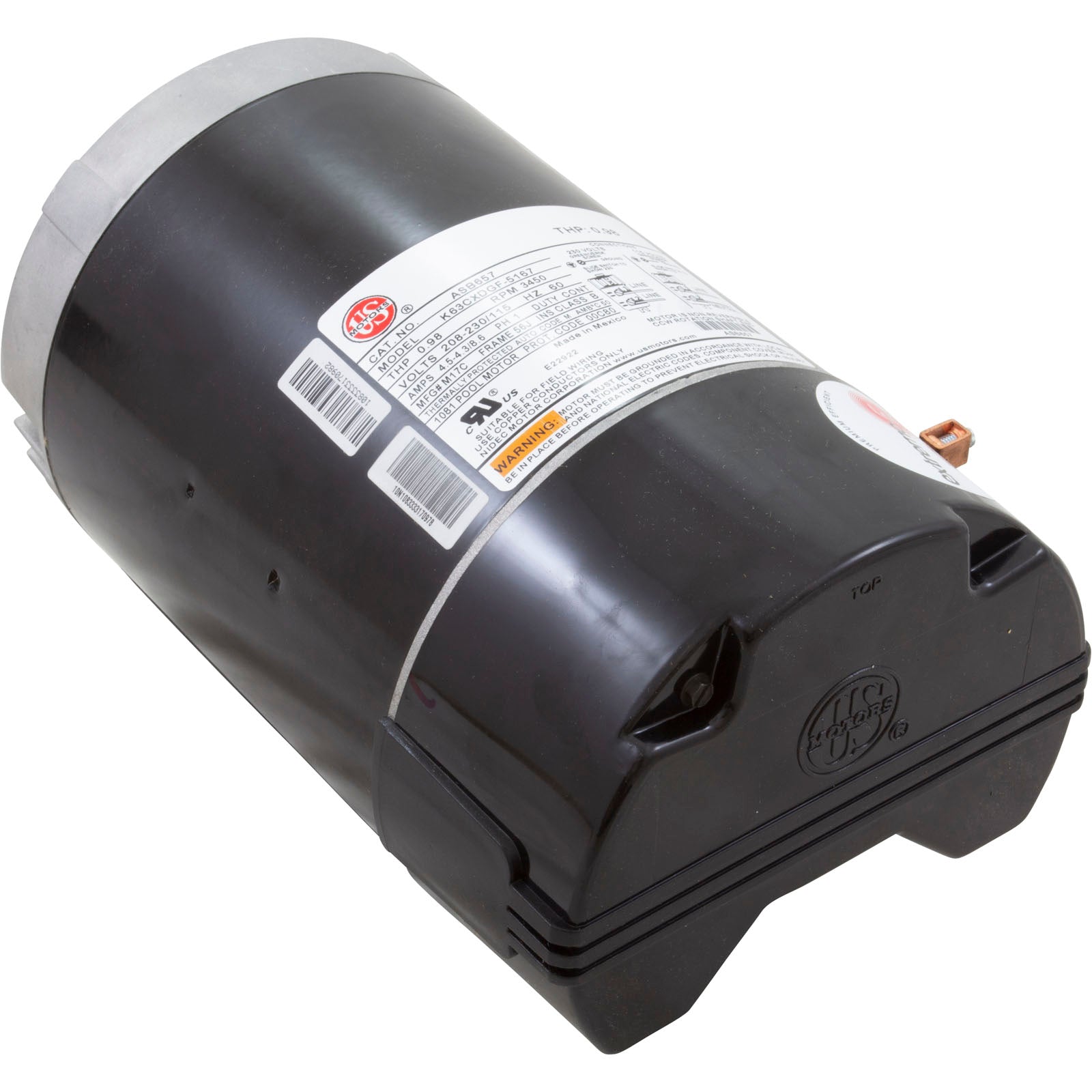

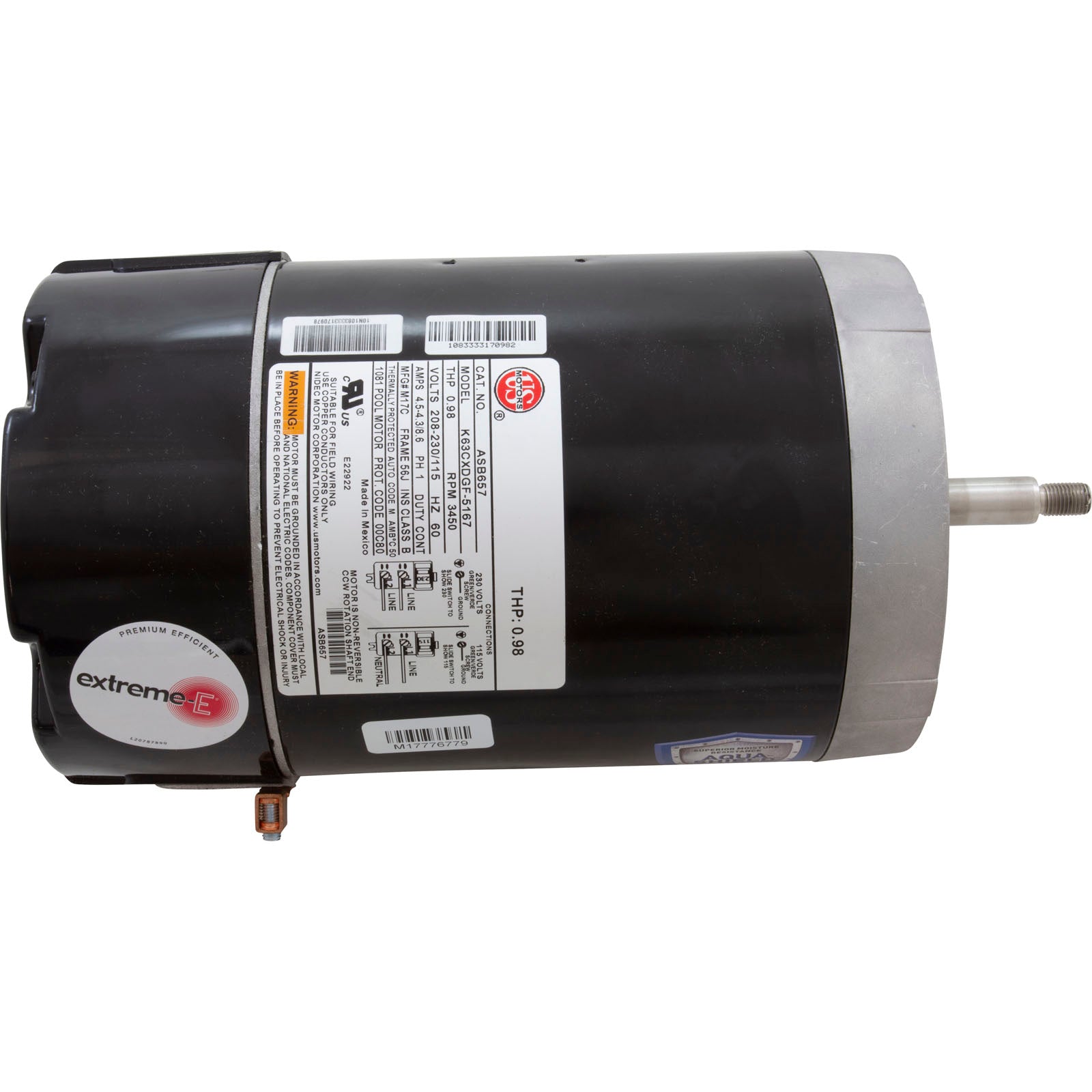

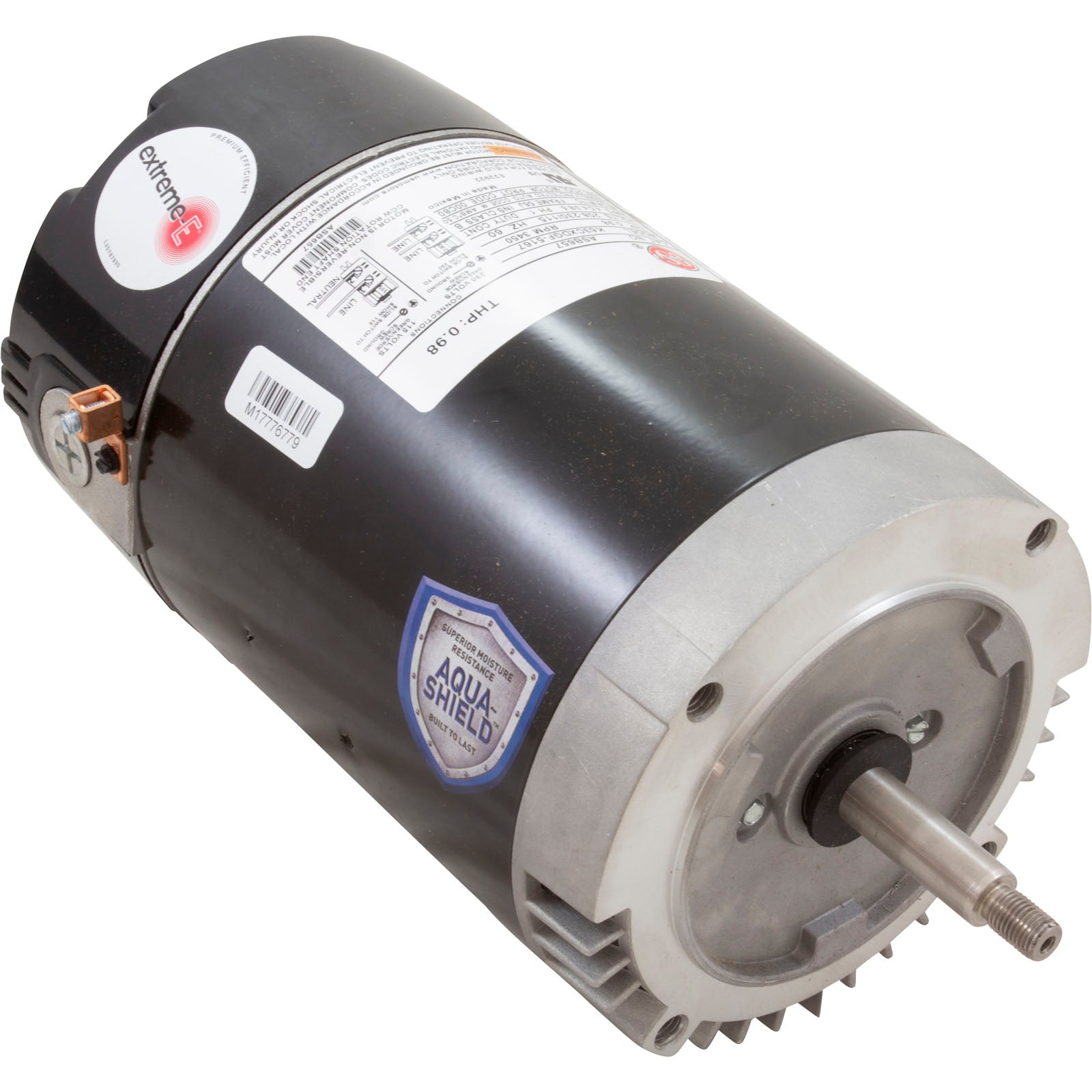

U.S. Motors ASB657 Definite Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors ASB657 is a definite purpose single phase ODP C-face motor designed for various applications. This motor operates at 0.98 horsepower and achieves a high speed of 3600 RPM. It is suitable for continuous duty operation and is built to meet the demands of industrial and commercial settings.

• Voltage Rating: 208-230/115

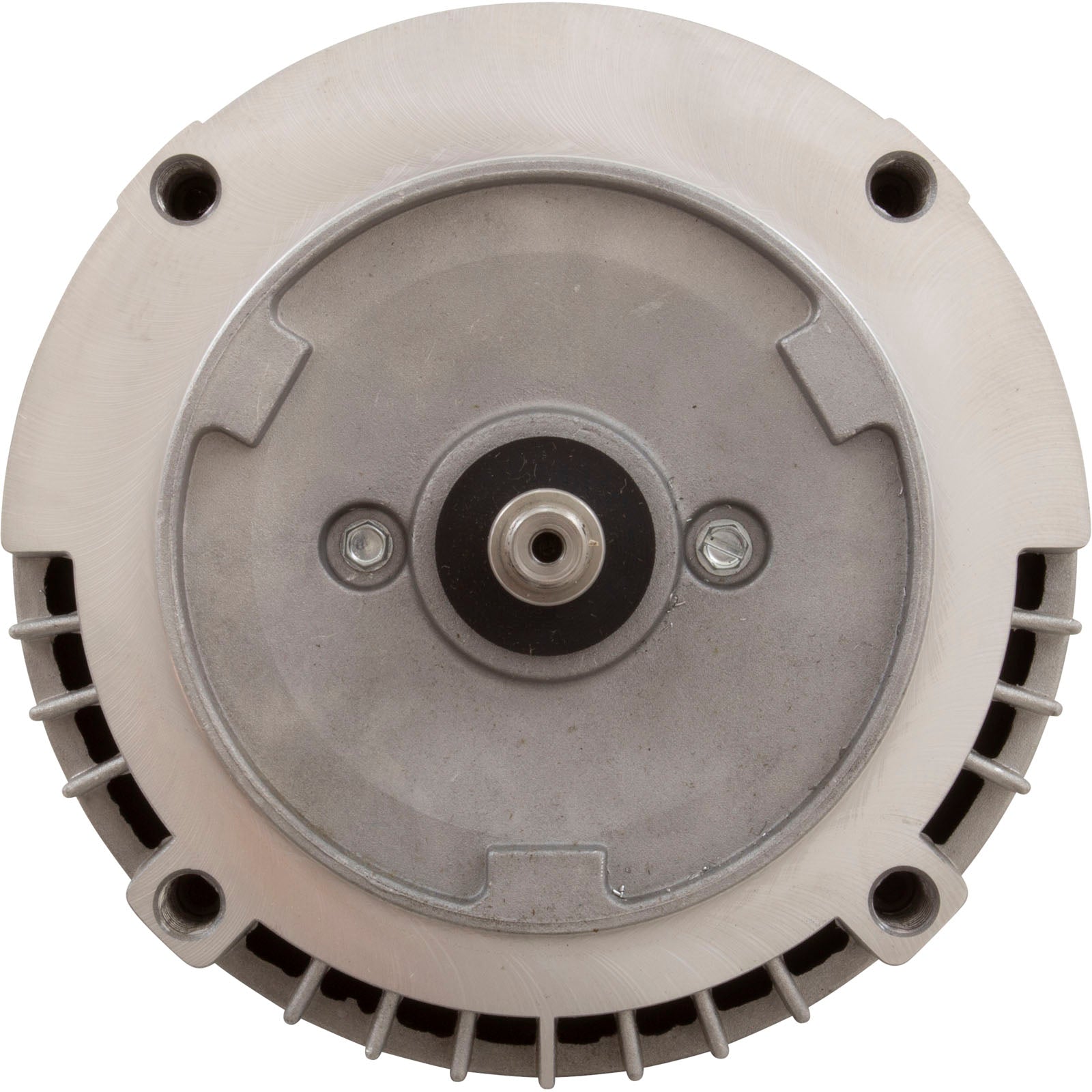

• Mounting Type: C-Face
• Frame Size: 56J

Product Highlights

This motor features automatic reset thermal protection for enhanced reliability. The open drip proof enclosure ensures safe operation in various environments.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: ASB657

Technical Specifications

• Motor Application: Definite Purpose
• RPM: 3600
• Duty: Continuous Duty
• Phase: Single Phase
• Frame: 56J
• Poles: 2
• Weight: 20.0 LB
• Full Load Amps: 4.5-4.3/8.6
• Enclosure Designation: ODP - Open Drip Proof
• Insulation: Class B
• Thermal Protection: Automatic Reset
• Voltage Rating: 208-230/115
