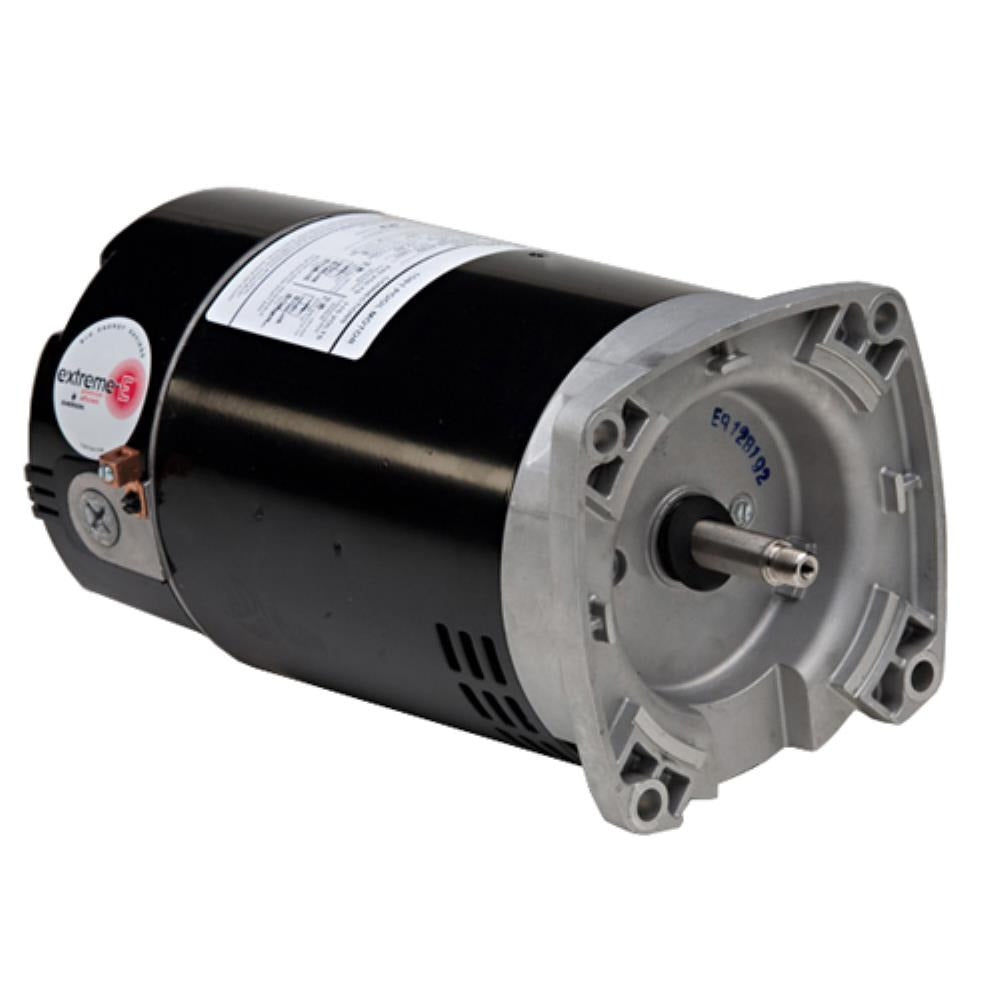

U.S. Motors ASB2984 Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors ASB2984 is a definite purpose single phase open drip proof square flange motor designed for various applications. This motor offers efficiency and reliability needed in demanding conditions.

• Power: 2.6 horsepower and 0.43 horsepower
• Speed: Operates at 3600 rpm and 1800 rpm
• Voltage: Designed for 230 volts

Product Highlights

Ideal for AC motors and definite purpose applications, featuring a square flange mount and constructed for continuous duty.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ASB2984

Technical Specifications

• RPM: 3600 rpm, 1800 rpm
• Mounting: Square Flange
• Frequency: 60 Hz
• Full Load RPM: 1725 rpm, 3450 rpm
• Motor Application: Definite Purpose
• Frame: 56Y
• Enclosure Designation: ODP - Open Drip Proof
• Phase: Single Phase
• C Dimension: 14.9 in
• Poles: 2/4
• Duty: Continuous Duty
• Thermal Protection: Automatic Reset
• Voltage Rating: 230
• Weight: 36.0 LB
• Insulation: B
• EAN or UPC: 786382111496
