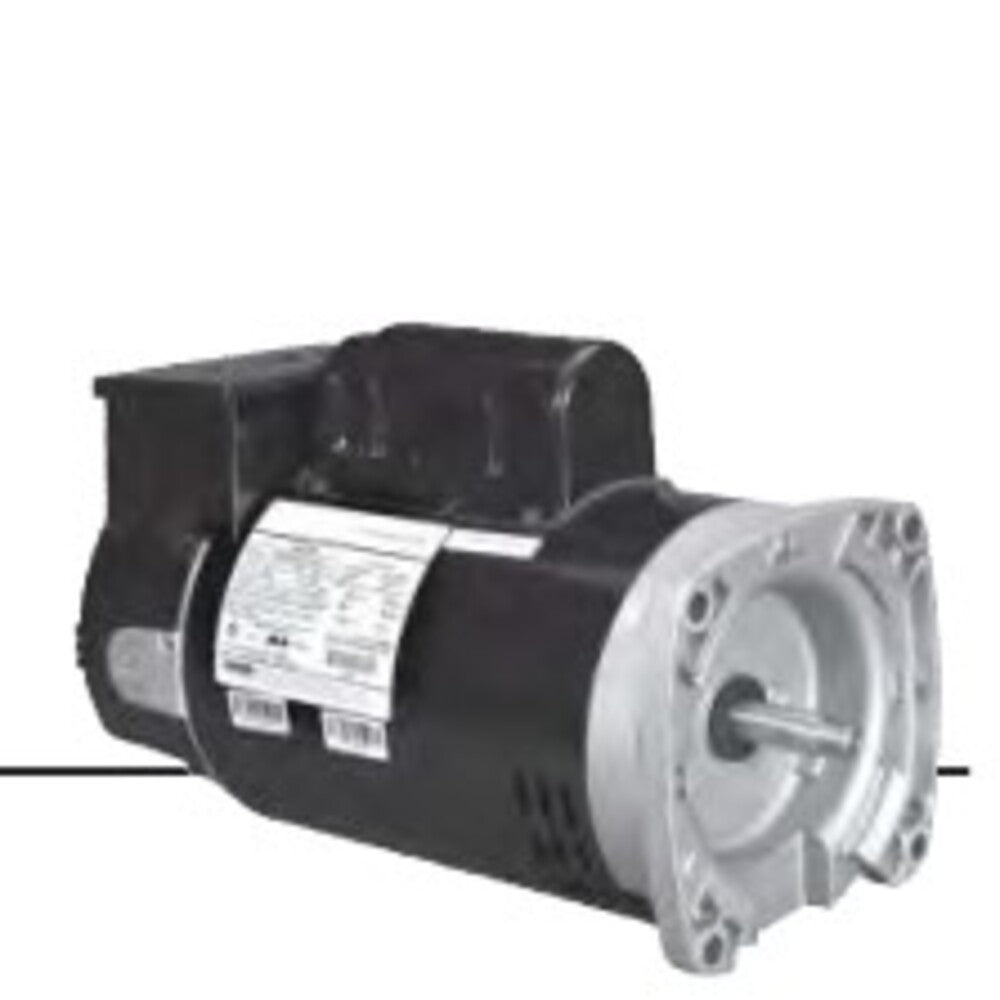

U.S. Motors ASB2980T Definite Purpose Single Phase ODP Square Flange Motor

Product Description

The U.S. Motors ASB2980T is a definite purpose single phase ODP square flange motor. It is ideal for applications requiring a reliable motor to power various mechanical systems.

• 1.25 horsepower rating
• Voltage rating of 230
• Open drip proof enclosure

Product Highlights

This motor is designed for continuous duty and comes with automatic reset thermal protection. It efficiently operates at 3600 and 1800 RPM, suitable for many HVAC and pumping applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ASB2980T

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Duty: Continuous Duty
• Voltage Rating: 230
• Frame: 56Y
• Poles: 2/4
• Hz: 60 Hz
• RPM: 3600 rpm, 1800 rpm
• Phase: Single Phase
• Mounting: Square Flange
• Full Load Amps: 5.8/1.2
• Insulation: B
• Full Load RPM: 1725 rpm, 3450 rpm
• Motor Application: Definite Purpose
• Weight: 27.0 LB
• EAN or UPC: 786382113117
