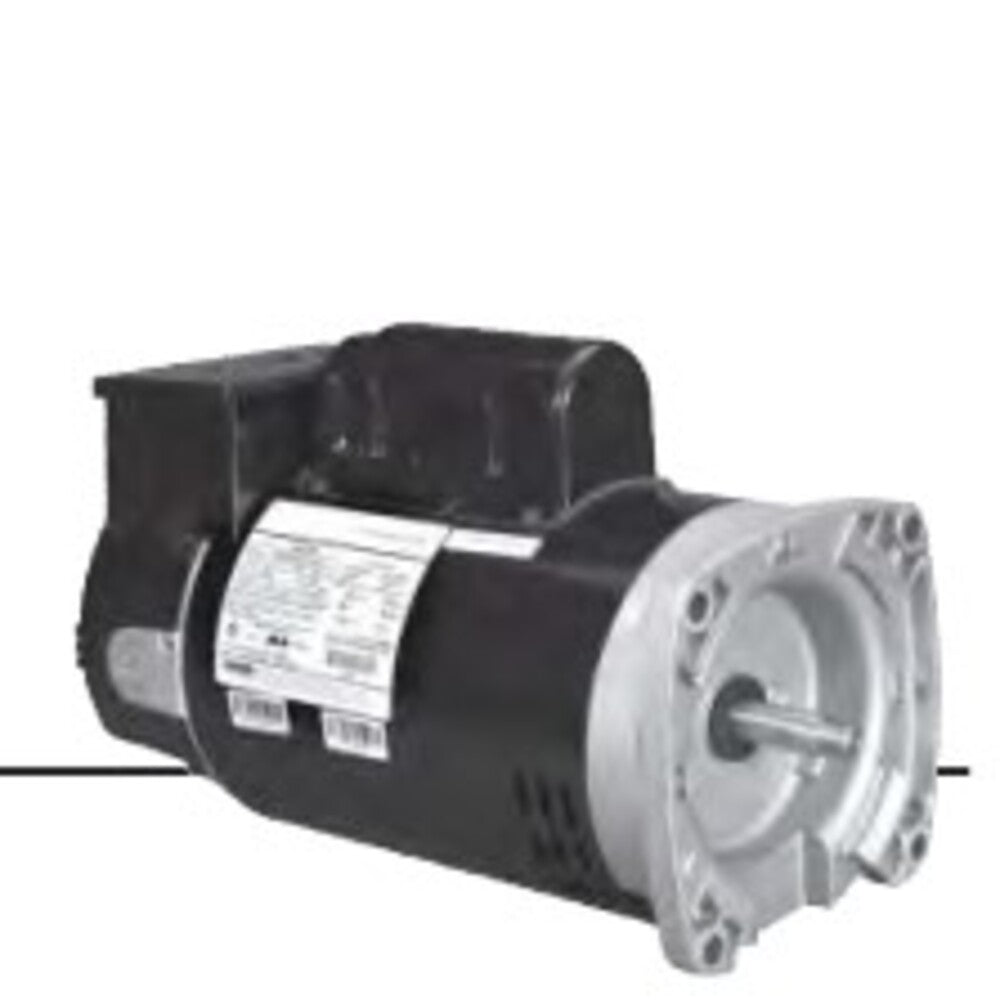

U.S. Motors ASB2973HT Definite Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors ASB2973HT is a definite purpose single phase motor designed for various applications. This motor operates at 3600 and 1800 RPM and is built for continuous duty. With a voltage rating of 230V, it offers reliable performance in demanding environments.

• 1 1/4 horsepower and 0.17 horsepower ratings
• Automatic reset thermal protection
• C-Face mounting for easy installation

Product Highlights

The ASB2973HT motor provides efficient operation and is suitable for agricultural and industrial applications. Its open drip-proof design enhances durability in outdoor settings.

Product Information

Standard Information

• Brand: U.S. Motors
• Motor Application: Definite Purpose

Technical Specifications

• Frame: 56J
• Full Load RPM: 1725 RPM, 3450 RPM
• Thermal Protection: Automatic Reset
• Full Load Amps: 5.8/1.2
• Voltage Rating: 230
• Enclosure: ODP
• Phase: Single Phase
• Duty: Continuous Duty
• Insulation: B
• Poles: 2/4
• Weight: 27.0 LB
• EAN or UPC: 786382113155
