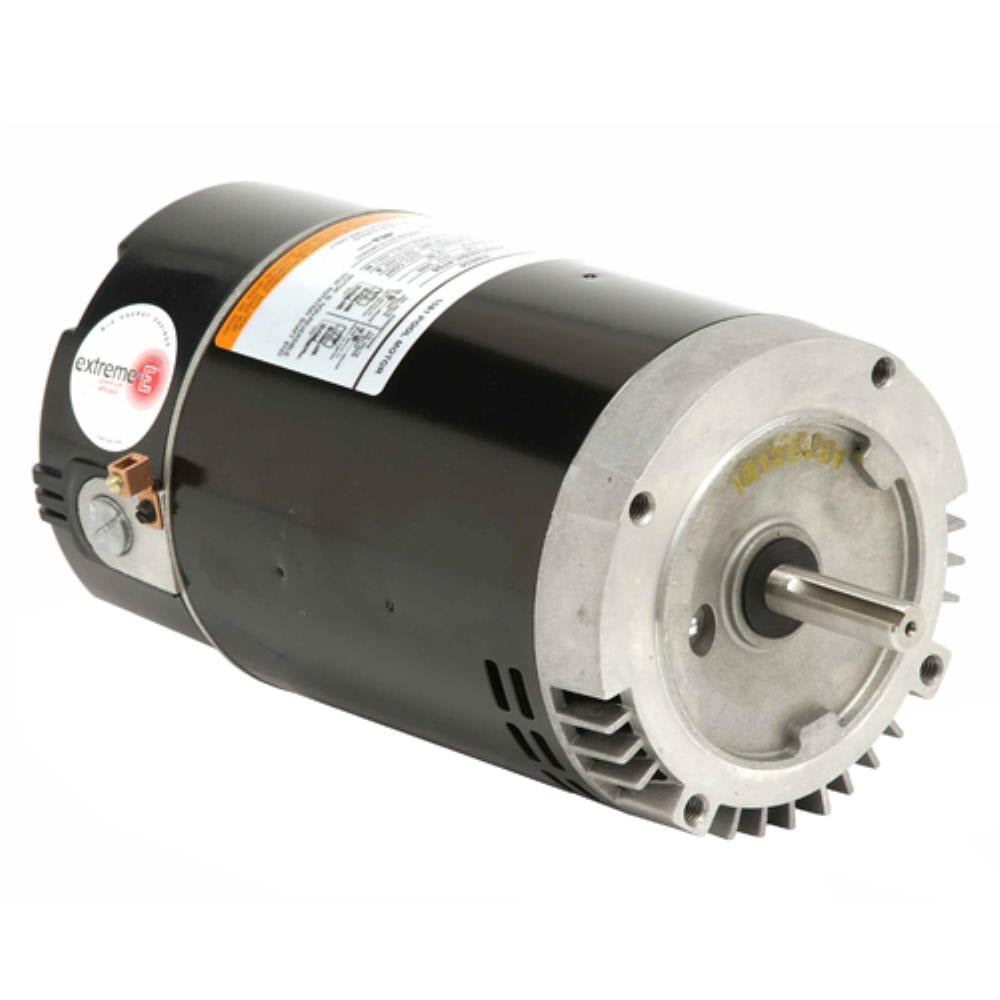

U.S. Motors ASB2973H Definite Purpose Single Phase ODP C-Face Motor

Product Description

The U.S. Motors ASB2973H is a definite purpose single phase ODP C-Face motor designed for various industrial applications. This motor delivers efficient performance with a power output of one and a quarter horsepower, capable of running at either three thousand six hundred or one thousand eight hundred RPM.

• Voltage Rating: Two hundred thirty volts
• Enclosure: Open Drip Proof (ODP)
• Frame Size: 56J

Product Highlights

This motor is suitable for a wide range of applications including HVAC systems and pool pumps. It features a robust construction ensuring long-lasting performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: ASB2973H

Technical Specifications

• Voltage Rating: 230 volts
• C Dimension: 14.5 inches
• Enclosure Designation: ODP - Open Drip Proof
• Mounting: C-Face
• Motor Application: Definite Purpose
• Thermal Protection: Automatic Reset
• Poles: 2/4
• Full Load RPM: 1725 RPM, 3450 RPM
• Frequency: 60 Hz
• Insulation: B
• Duty: Continuous Duty
• Weight: 27.0 pounds
• EAN or UPC: 786382111502
