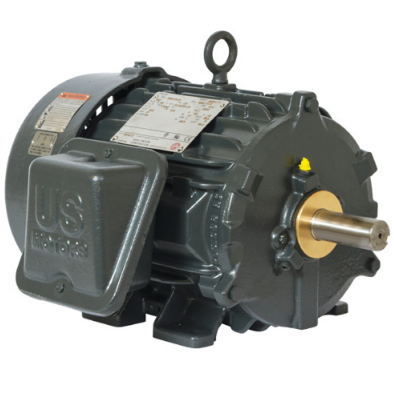

U.S. Motors 8D7P2C Severe Duty & IEEE 841 Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors 8D7P2C is a severe duty motor designed for challenging applications. It features a three-phase design and comes equipped with a TEFC (Totally Enclosed Fan Cooled) enclosure. This motor operates at 1800 RPM and offers a power rating of seven and one-half horsepower. Ideal for equipment that requires reliable performance under tough conditions.

• Three-phase motor with a TEFC enclosure
• Operating efficiency of 91.7%
• Designed for continuous duty operation

Product Highlights

Built to withstand demanding conditions, this motor is suitable for various industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 8D7P2C

Technical Specifications

• Frame: 213T
• RPM: 1800 rpm
• Voltage Rating: 460
• Full Load Efficiency: 91.7%
• Hz: 60 Hz
• Frame Material: Cast Iron
• Insulation: F
• Duty: Continuous Duty
• Full Load Amps: 9.6
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load RPM: 1770 rpm
• Poles: 4
• Phase: Three Phase
• Mounting: Horizontal - Footed
• Motor Application: Severe Duty
• Weight: 170.0 lb
• EAN or UPC: 786382122331
