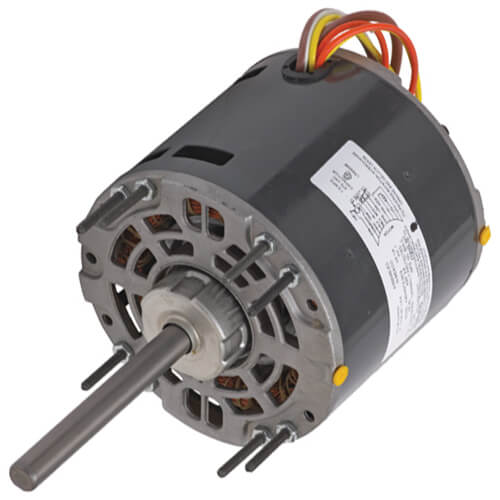

Nidec-US Motors 8952 1/5 HP 208 to 230 V 3-Speed Condenser Fan Motor

Product Description

The Nidec-US Motors 8952 is a reliable condenser fan motor. It operates at one-fifth horsepower with a voltage range of two hundred eight to two hundred thirty volts. The motor has three speeds and runs at one thousand seventy-five RPM. The design includes a reversible feature and is suitable for various applications.

• Power Rating: 1/5 HP
• Voltage: 208 to 230 Volt
• Speed: 1075 RPM

Product Highlights

This motor is ideal for direct drive fans and blowers. It features a permanently split capacitor and a durable open air-over design. It includes a 24-inch lead for easy installation.

Product Information

Standard Information

• Manufacturer: Nidec-US Motors
• Mounting Type: Stud/Hub Ring

Technical Specifications

• Motor FLA: 1.6 Amp
• Number of Speeds: 3
• Reversible: Yes
• Size: 5 inches diameter x 9.9 inches length
• Shaft Size: 1/2 inch diameter x 4 inches length
• Bearing Type: SAB
• Application: Direct Drive Fan and Blower
