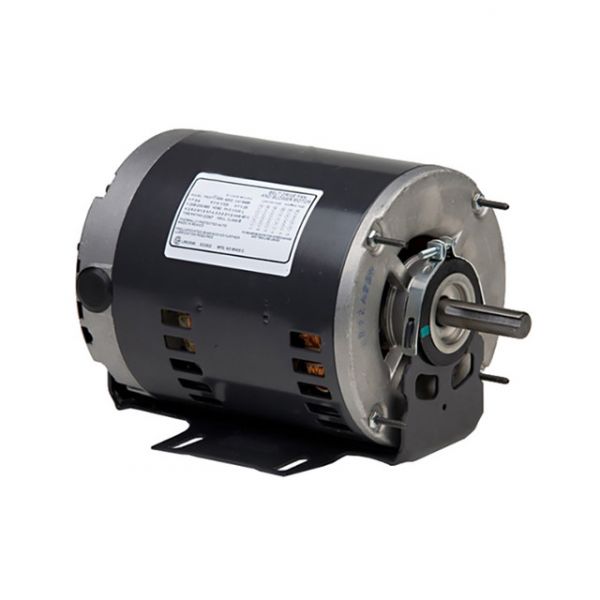

U.S. Motors 8490P HVAC Three Phase ODP Resilient Base Motor

Product Description

The U.S. Motors 8490P is a three-phase HVAC motor designed for various heating and cooling applications. This motor operates at a horsepower of one and a half with a speed of one thousand eight hundred RPM. It features a resilient base mount and an open drip proof enclosure. The voltage rating for the motor is available in two options, 208-230 or 460 volts, making it versatile for different installations.

• Continuous duty rated
• Automatic reset thermal protection included
• Designed for efficient HVAC operation

Product Highlights

The U.S. Motors 8490P provides reliable performance with a full load efficiency of eighty-six point five percent. It is suitable for HVAC systems and built with a robust frame for durability.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 8490P

Technical Specifications

• Insulation: B
• Enclosure: ODP - Open Drip Proof
• Frame: 56H
• Thermal Protection: Automatic Reset
• Full Load RPM: 1725 RPM
• Frequency: 60 Hz
• Duty: Continuous Duty
• Full Load Amps: 4.8-4.8/2.4
• Voltage Rating: 208-230/460
• Full Load Efficiency: 86.5%
• Service Factor: 1.15
• Poles: 4
• Mounting: Resilient Base
• Motor Application: HVAC
• Phase: Three Phase
• C Dimension: 13.7 in
• Weight: 40.0 LB
• EAN or UPC: 786382111052
