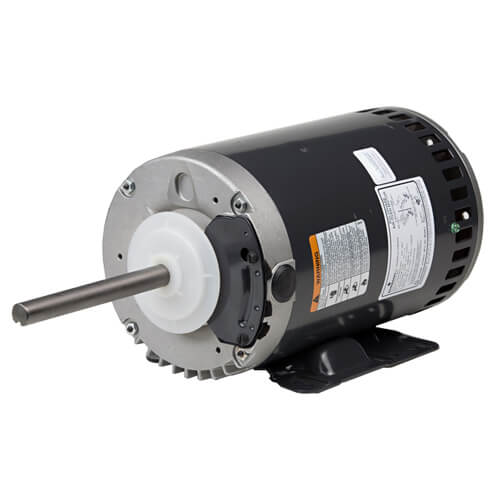

Nidec-US Motors 8058 Condenser Fan Motor 1hp 1140rpm 200-230/460V 56ZFrm

Product Description

The Nidec-US Motors 8058 is a high-performance condenser fan motor designed for various industrial applications. It delivers reliable performance with a 1hp power output, suitable for demanding HVAC systems.

• 1hp power output
• 1140rpm speed
• 200-230/460V voltage range

Product Highlights

This motor is built with a durable cast iron frame and offers a continuous duty rating and high efficiency, making it ideal for energy-saving and demanding applications. It is also reversible and includes automatic thermal protection.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Manufacturer: Nidec Motor Corporation

Technical Specifications

• Item Number: 8058
• Type: Continuous Duty
• Speed: 1140 rpm
• Efficiency: 79.7%
• Bearing Type: Ball
• Power Rating: 1 hp
• Mounting Type: Band
• Rotation Type: Reversible
• Enclosure Type: Open Drip Proof
• Overall Length: 13.7 inches
• Service Factor: 1
• Voltage Rating: 200-230/460 V
• Amperage Rating: 3.6/1.8 A
• Insulation Type: Class B
• Frequency Rating: 60 Hz, 3 Phase
• Number of Speeds: 1
