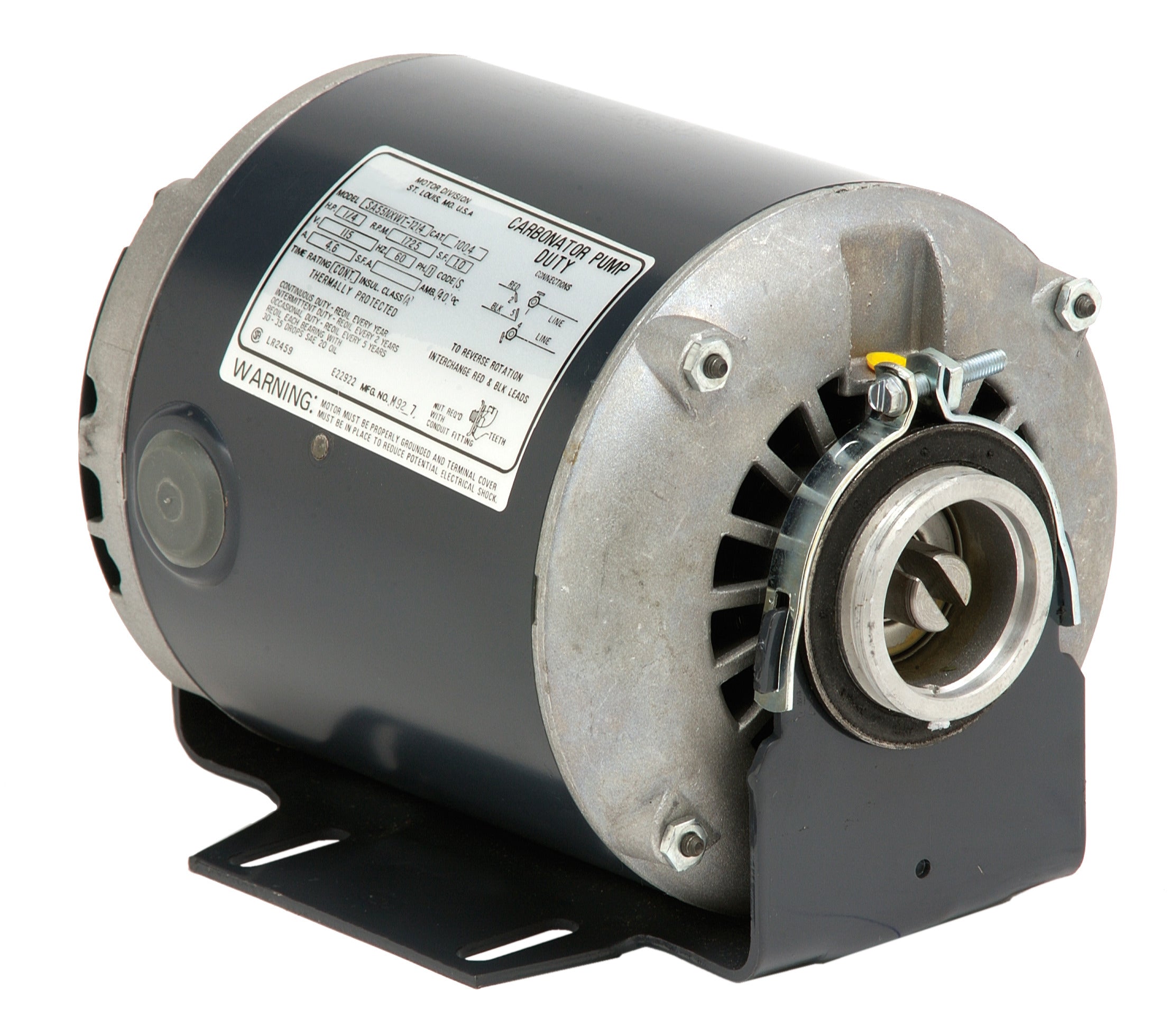

U.S. Motors 7998 General Purpose Single Phase ODP Resilient Base Motor

Product Description

The U.S. Motors 7998 is a general purpose single phase motor designed for various applications. This motor operates at a power output of one-fourth horsepower and reaches a speed of twelve hundred RPM. It features an open drip proof (ODP) enclosure, ensuring reliability in various environments.

• Split phase operation
• Automatic reset thermal protection
• Resilient base mounting for stable installation

Product Highlights

The 7998 model is suitable for continuous duty applications and provides a voltage rating of 208-230. The robust design includes a sleeve bearing setup and a 56 frame size.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 7998

Technical Specifications

• Power Output: 1/4 HP
• Voltage Rating: 208-230 V
• Frequency: 60 Hz
• Full Load RPM: 1200
• Frame Size: 56
• Weight: 25 LB
• Poles: 6
• Service Factor: 1.35
• Thermal Protection: Automatic Reset
• Mounting Type: Resilient Base
