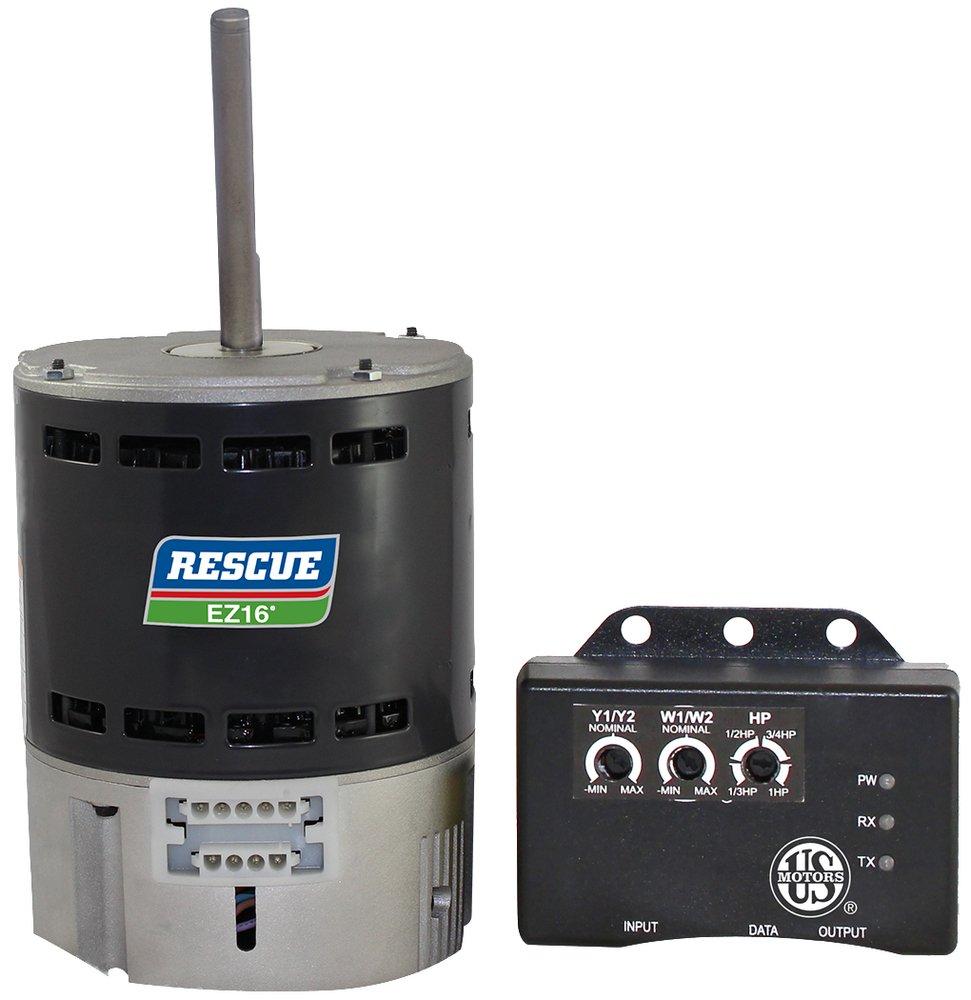

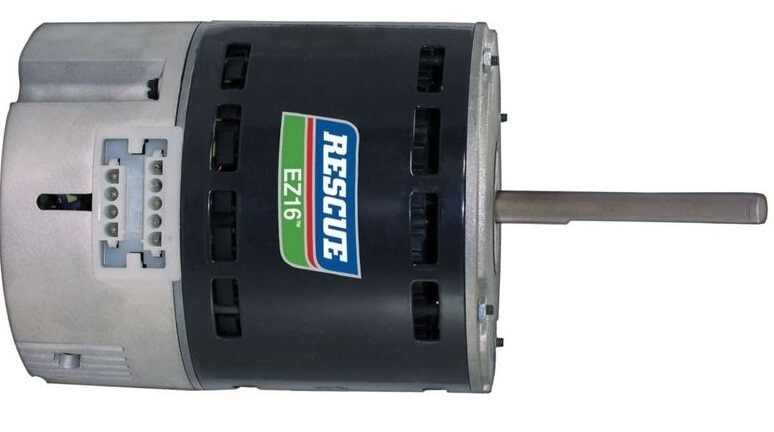

US Motors 5862 RESCUE EZ16 1/3 - 1/2 hp 1075 RPM 115/208-230V Single Phase ECM Variable Speed Blower Motor

Product Description

The US Motors 5862 is a RESCUE EZ16 ECM blower motor designed for efficient airflow management. This motor operates at one-third to one-half horsepower and supports variable speeds up to 1075 RPM. It works at voltage ratings of 115/208-230 single-phase and is a suitable replacement for many HVAC applications.

• Compatible with various heating and cooling systems
• Built-in moisture protection
• Adjustable airflow control for precise performance

Product Highlights

This motor enhances energy efficiency while providing reliable power for HVAC systems.

Product Information

Standard Information

• Brand: US Motors
• Part Number: 5862

Technical Specifications

• Horsepower: 1/3 to 1/2 hp
• Voltage Rating: 115/208-230 V
• Speed: 1075 RPM
• Phase: Single
• Frame: NEMA 48
• Rotation: Reversible
• Enclosure Type: Open Air Over
• Frequency Rating: 50/60 Hz
• Amperage Rating: 6.4/4.0 to 3.8 A
• Insulation Class: Class B
• Temperature Rating: 40 deg C
