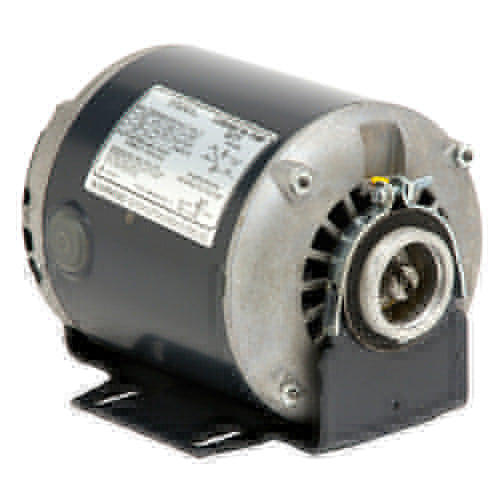

US-Nidec 6001 Carbonator Pump Motor 1/4 HP

Product Description

The US-Nidec 6001 Carbonator Pump Motor is designed for effective operation in carbonator pump applications. This motor features a split phase design with a power rating of one-fourth horsepower. It operates efficiently at two voltage configurations: one hundred to one hundred twenty volts and two hundred to two hundred forty volts. The motor provides a speed of one thousand seven hundred twenty-five RPM and is built with rolled steel for durability.

• Rated for single phase and open dripproof enclosure type
• Includes auto overload protection
• Heavy duty construction with a resilient base for stability

Product Highlights

This motor is ideal for carbonator pump applications and operates smoothly under varying load conditions.

Product Information

Standard Information

• Electrical Type: Split Phase
• Phase: Single

Technical Specifications

• HP: 1/4
• KW: 0.2
• Stack: 1.25
• RPM: 1725
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: OAO
• Voltage: 100-120 & 200-240
• Amperage: 4.5-4.7/2.2-2.4
• Material: Rolled Steel
• Mounting: Resilient Base
• Service Factor: 1
