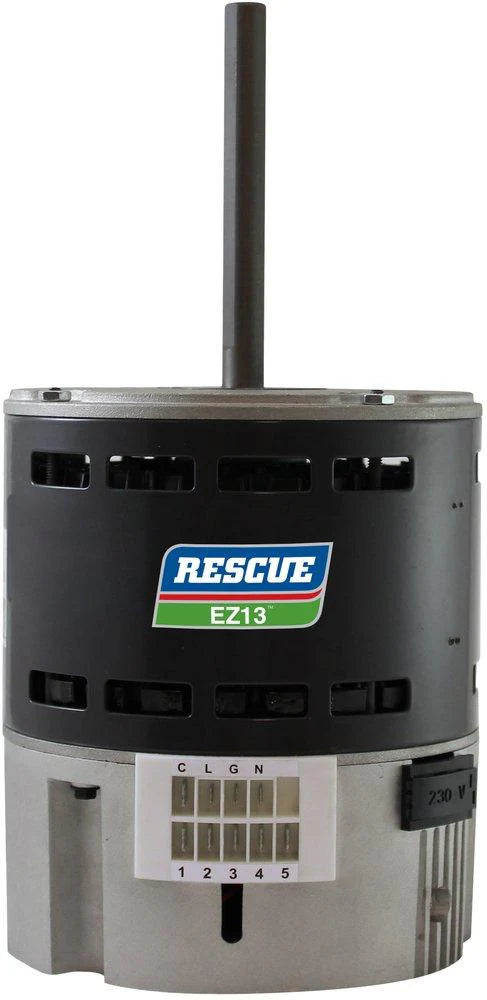

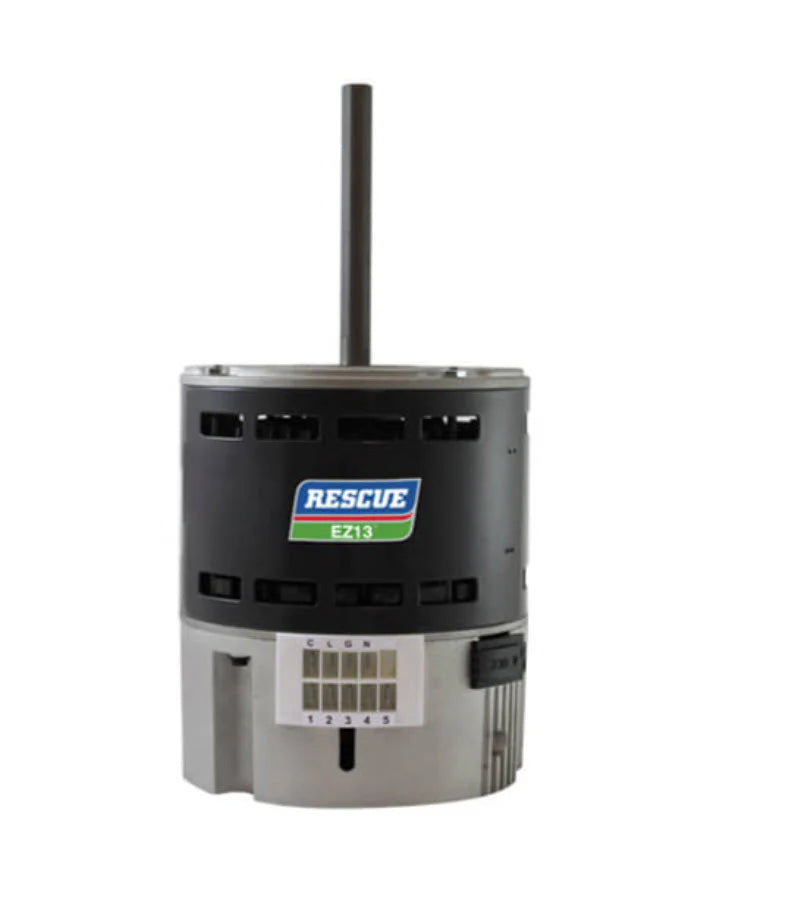

US Motors 5652 EZ13 1 hp 1075 RPM 115/208/230V Single Phase ECM Variable Speed Blower Motor

Product Description

The US Motors 5652 is a direct drive blower motor designed for HVAC applications. This motor operates at one horsepower and features a variable speed design. It is compatible with voltages of 115, 208, and 230, making it versatile for various setups.

• Auto-sensing rotation eliminates the need for programming.
• Built-in surge protection and moisture protection ensure longevity.
• Universal ECM replacement compatible with Selectech, X13, and EnduraPro motors.

Product Highlights

This blower motor is suitable for furnaces and air handlers, providing constant torque and reliable operation.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: Nidec Motor Corporation

Technical Specifications

• Frame: 48Y
• Phase: Single
• Speed: 1075 RPM
• Rotation: Reversible
• Horsepower: 1 hp
• Shaft Size: 1/2 x 5 inches
• Voltage Rating: 115/208 to 230 V
• Amperage Rating: 12.4/7.8 to 7.2 A
• Frequency Rating: 50/60 Hz
• Enclosure Type: Open Air Over
• Bearing Type: Ball
