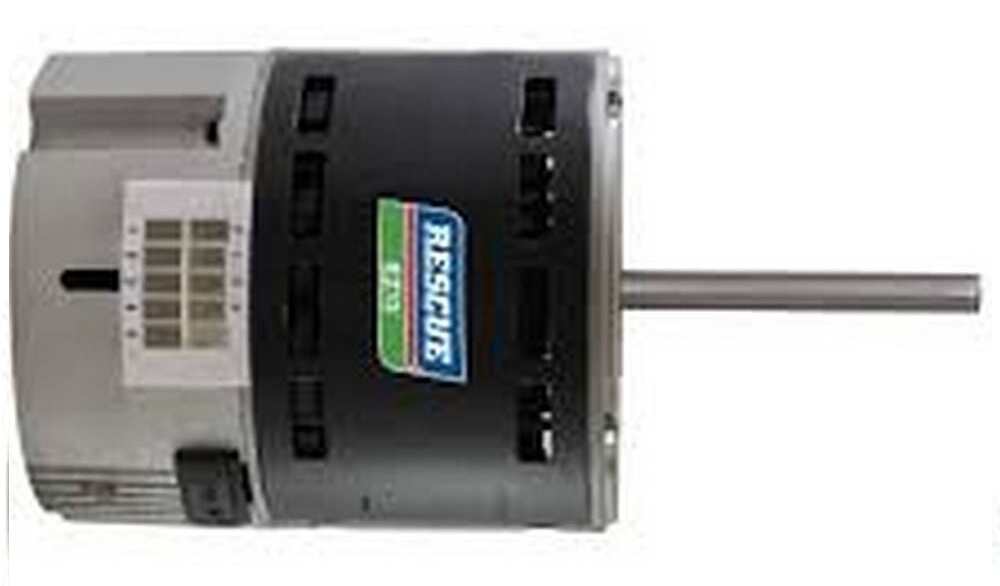

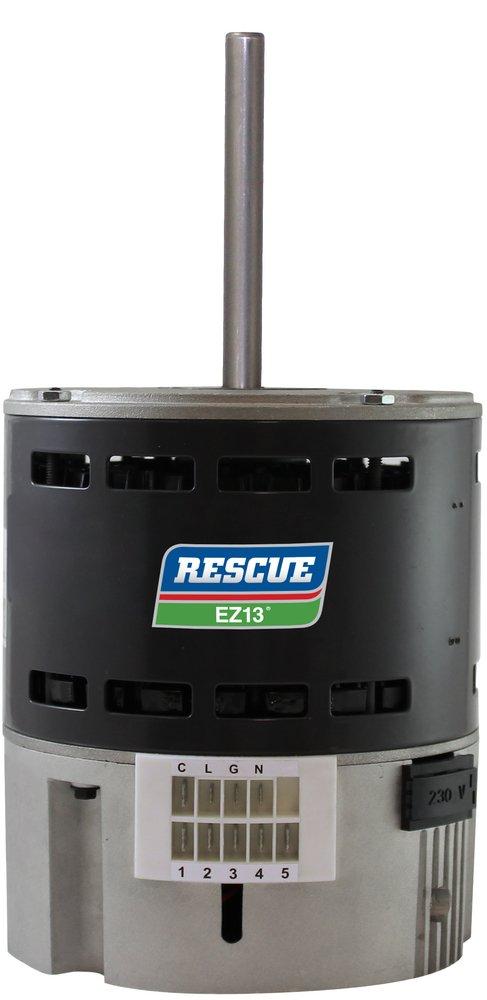

US Motors 5632 EZ13 1/2 - 1/3 HP 1075 RPM 115/208/230 V

Product Description

The US Motors 5632 is an efficient electric motor designed for HVAC applications. Operating at 1/2 to 1/3 horsepower with an RPM rating of 1075, this motor provides reliable performance in various environments. Its construction is suitable for direct drive blower applications, ensuring it meets the demands of the HVAC industry.

• Universal ECM replacement for Selectech, X13, and EnduraPro motors.
• Moisture protection and built-in surge protection up to 6,000 volts.
• Ready to install, requires no programming.

Product Highlights

This motor is ideal for heating and cooling systems, facilitating efficient airflow in residential and commercial settings.

Product Information

Standard Information

• Brand: US Motors
• MPN: 5632

Technical Specifications

• Horsepower: 1/2 to 1/3 HP
• Voltage Rating: 115/208 to 230 VAC
• Speed: 1075 RPM
• Amperage Rating: 6.4/4.0 to 3.8 A
• Frequency Rating: 50/60 Hz
• Frame: NEMA 48Y
• Dimensions: 5-5/8 in Dia x 11-1/4 in L
• Enclosure Type: Open Air Over
• Mounting Type: Belly Band
• Rotation: Reversible
• Service Factor: 1
• Insulation Class: Class B
