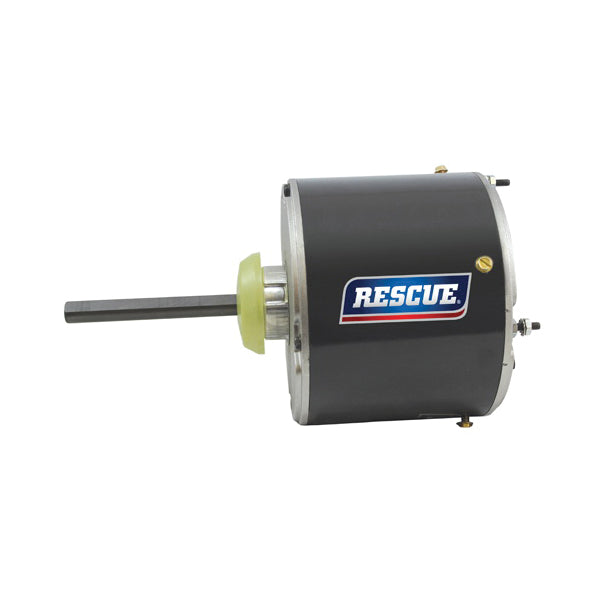

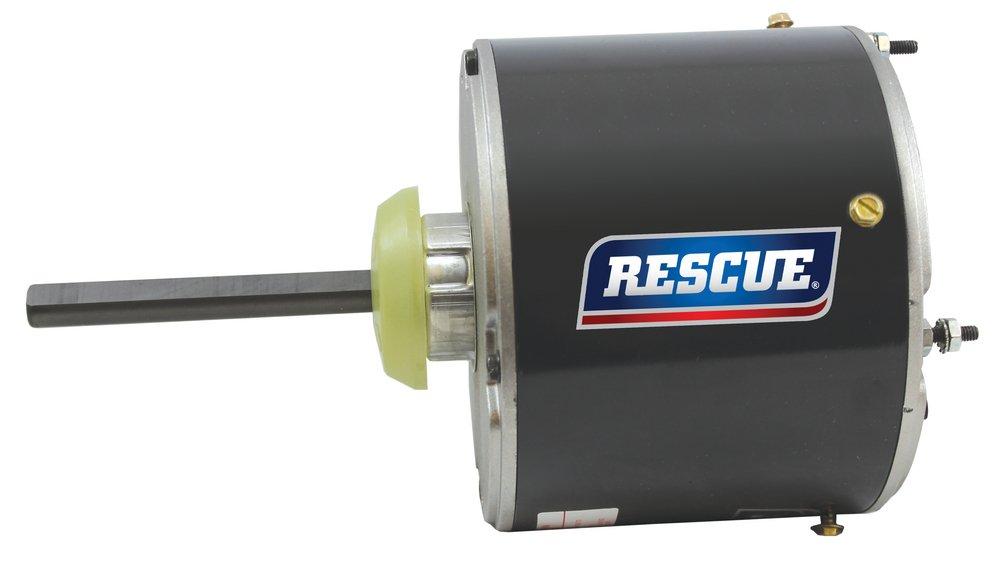

US Motors 5462 RESCUE 1/6 - 1/3 hp 1075 RPM 208/230V Single Phase Condenser Motor

Product Description

The US Motors 5462 is a condenser fan motor designed for commercial and residential applications. This 1/6 to 1/3 horsepower motor operates at a speed of 1075 RPM and is rated for 208 to 230 volts. Its reversible rotation makes it versatile for a wide range of HVAC installations.

• Reversible motor for flexibility in installation
• Durable ball bearing design for extended life
• Automatic reset thermal overload protection for safety

Product Highlights

This condenser fan motor is ideal for use in various condensing units. It is engineered to provide continuous duty operation, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: Nidec Motor Corporation

Technical Specifications

• MPN: 5462
• Voltage Rating: 208 to 230 VAC
• Phase: 1 ph
• Horsepower: 1/6 to 1/3 hp
• Speed: 1075 rpm
• Service Factor: 1
• Amperage Rating: 2.6/1.8 A
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Dimensions: 5.6 in diameter x 9.6 in L
• Shaft Size: 1/2 in diameter
• Bearing Type: Ball
• Rotation: Reversible
• Insulation Class: Class B
• Temperature Rating: 140 deg F Ambient
