Product Description

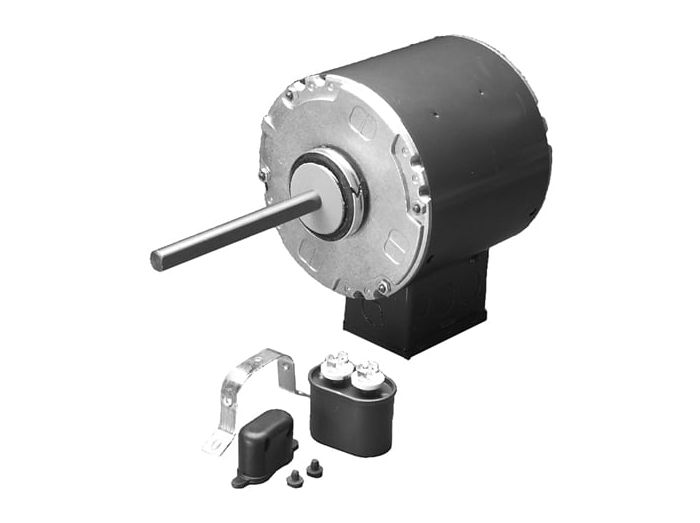

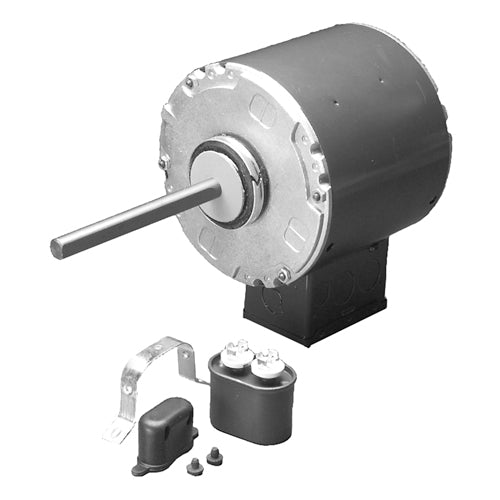

The US MOTORS 2201 is a 1/2 HP condenser fan motor operating at 1075 RPM. This permanent split capacitor motor is designed for condenser cooling fans in commercial air conditioning applications. It features double sealed ball bearings and class B insulation for long-lasting performance. The motor is rated for 208-230/460V and has reversible rotation.
- Permanent split capacitor
- Double sealed ball bearings
- Class B insulation
Product Highlights
This condenser fan motor offers energy-efficient performance and cooler operating temperatures. It is suitable for various mounting positions and features automatic reset thermal overload protection.
Product Information
Standard Information
-
Brand: US MOTORS
-
Manufacturer Part Number: 2201
-
Country of Origin: Mexico
Technical Specifications
-
MPN: 2201
-
Brand: US MOTORS
-
Product Type: ELECTRIC_MOTOR
-
Horsepower: 1/2 hp
-
RPM: 1075 RPM
-
Nameplate RPM @ 60 Hz: 1,075 RPM
-
Nameplate Voltage @ 60 Hz: 208-230/460V AC
-
Frequency: 60 Hz
-
Volts: 208-230/460
-
Phase: Single
-
Number of Speeds: 1
-
Frame Size: 48Y
-
Motor Enclosure Type: Totally Enclosed Non-Ventilated
-
Motor Enclosure: TENV
-
Bearing Type: Ball
-
Rotation: CCW Lead End Rev
-
Mounting Type: Resilient Ring; Stud
-
Mounting: Ring
-
Duty: Continuous
-
Ambient Temperature - Maximum: 60 °C
-
Motor Thermal Protection: Auto
-
Full Load Amps @ 60 Hz: 3.2-3.1/1.6 A
-
Current Rating: 1.6 A, 3.2-3.1 A
-
Nameplate Service Factor @ 60 Hz: 1
-
Motor Design: Permanent Split Capacitor
-
Insulation Class: B
-
Motor Shaft Rotation: CW/CCW
-
Inverter Rating: Not Inverter Rated
-
Mounting Position: All Angle
-
Shaft Length: 5 in
-
Shaft Diameter: 1/2 in
-
Shaft Design: Flat
-
Overall Length: 12-25/32 in
-
Length Less Shaft: 7-25/32 in
-
Body Diameter: 5.6 in
-
Wattage: 400W
-
Kilowatts: 0.4 kW
-
Poles: 6
-
Frame Material: Steel
-
Nominal Efficiency: 72.4 %
-
Standards: CSA; UL
-
Manufacturers Warranty: 1 yr
-
Conduit Box Location: Interior
-
Lead Length: 5 in
-
Resilient Ring Diameter: 2-1/4 in
-
Ring to Ring Center: 7-3/8 in
-
Stator Diameter: 5.5
-
Stack: 2.5
-
Overload Protection: Automatic
