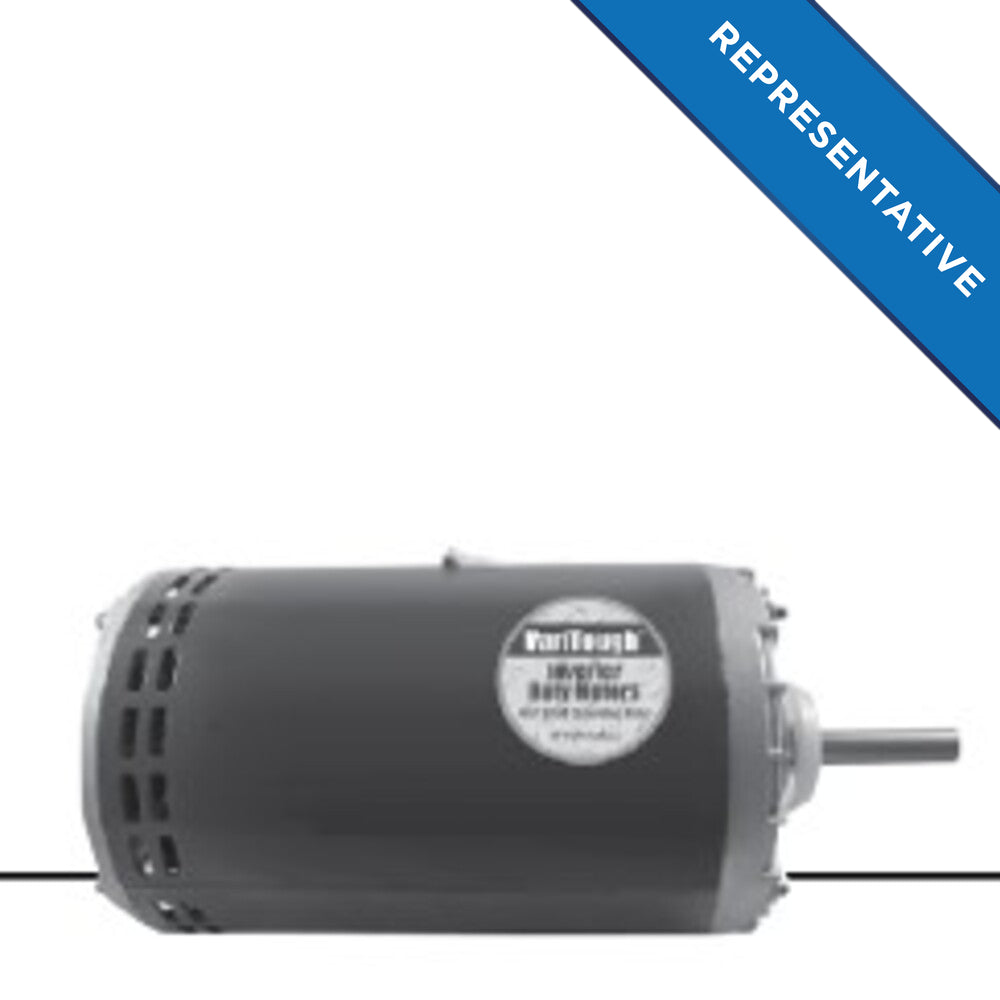

U.S. Motors 2166P General Purpose Single Phase Open Hub Motor

Product Description

The U.S. Motors 2166P is a general purpose single phase open hub motor designed to meet various AC motor applications. This motor operates at one-sixth horsepower and can reach speeds up to twelve hundred RPM, adhering to a voltage rating of one hundred fifteen volts. The open hub design makes it suitable for a range of mounting options and configurations.

• Voltage Rating: 115 volts
• Speed: 1200 RPM
• Frame Size: 42Y

Product Highlights

This motor is effective in numerous applications, providing reliable performance for HVAC systems, fans, and other machinery. Its continuous duty cycle makes it ideal for prolonged use, ensuring durability and efficiency.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 2166P

Technical Specifications

• Full Load RPM: 1050 RPM
• Service Factor: 1
• Duty: Continuous Duty
• Thermal Protection: Automatic Reset
• Poles: 6
• Weight: 8.38 LB
• Insulation Class: B
• Enclosure Type: Open
• Mounting Type: Hub
