Product Description

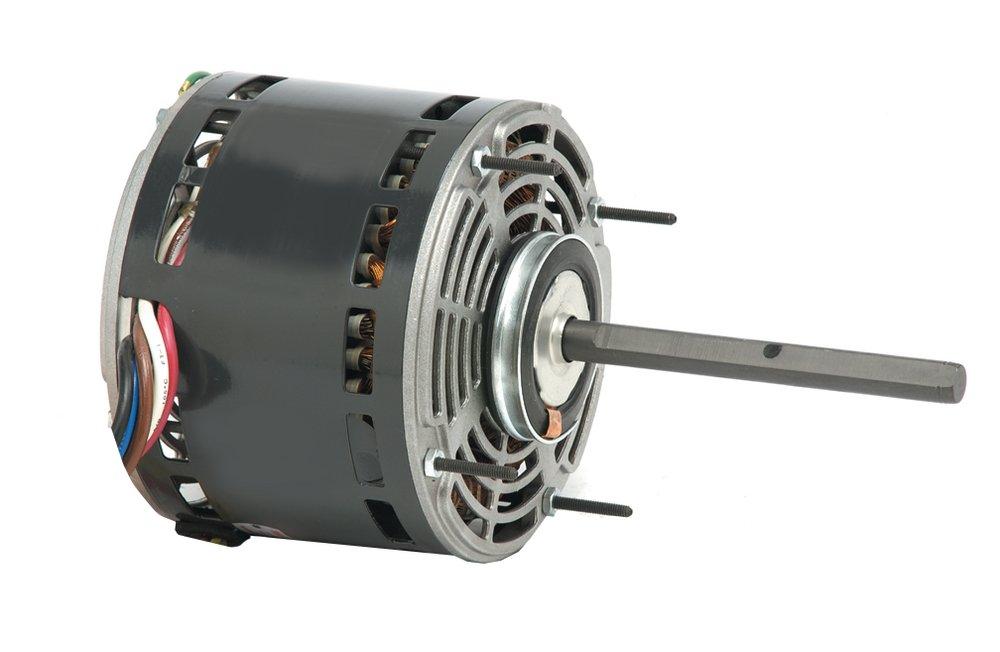

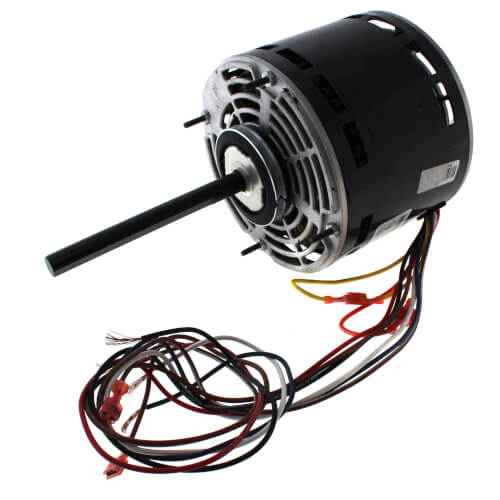

The US Motors blower motor, model 1972, operates at one third horsepower and 1075 RPM. Designed for 208-230 volts, this single-phase motor is suitable for various HVAC applications. The blower motor is reversible, which allows for flexible installation. It features built-in thermal protection to prevent overheating. This motor is ideal for both residential and commercial settings, providing reliable performance.
- One third horsepower for efficient operation
- Operates at 1075 RPM
- Reversible rotation for versatility
Product Highlights
This US Motors blower motor is perfect for various HVAC tasks. Its versatile design suits multiple applications including air handling and ventilation systems.
Product Information
Standard Information
-
Brand: US Motors
-
MPN: 1972
Technical Specifications
-
Voltage: 208-230 VAC
-
Horsepower: 1/3 HP
-
Speed: 1075 RPM
-
Phase: Single
-
Protection: Automatic reset thermal overload
-
Insulation Class: B
-
Connection Type: 24 leads
-
Shaft Diameter: 0.5 inches
-
Shaft Length: 5 inches
-
Frame Size: 48Y
-
Weight: 12 lbs
