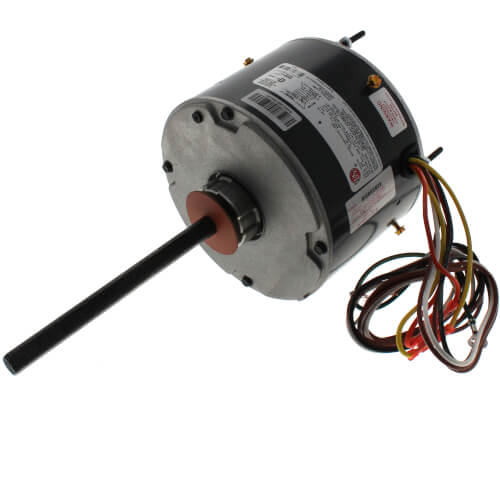

U.S. Motors 1873 HVAC Single Phase TEAO Stud/Band Motor 1/6 HP 208-230 Voltage Rating

Product Description

The U.S. Motors 1873 is an HVAC single-phase TEAO stud/band motor designed for efficiency in various applications. This motor offers a power rating of one-sixth horsepower and operates at a speed of eight hundred twenty-five revolutions per minute. It is compatible with a voltage rating between two hundred eight and two hundred thirty volts.

• Motor has a TEAO enclosure for durability and efficiency.
• Continuous duty rating suitable for HVAC and condenser fan applications.
• Easy installation with stud/band mounting options.

Product Highlights

This motor is perfect for both residential and commercial HVAC systems, providing reliable performance with a service factor of one.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 1873
• Power Rating: 1/6 HP
• Voltage Rating: 208-230 VAC
• Phase: Single Phase
• RPM: 825
• Enclosure Type: TEAO

Technical Specifications

• Frame Size: 48Y
• Service Factor: 1
• Full Load Amps: 1
• Weight: 12.0 LB
• Insulation Class: Class B
• Duty Type: Continuous Duty
• Drive End Bearing: 6203
• Open End Bearing: 6203
