U.S. Motors 1865 | HVAC Single Phase OAO Band/Hub/Stud Motor

Product Description

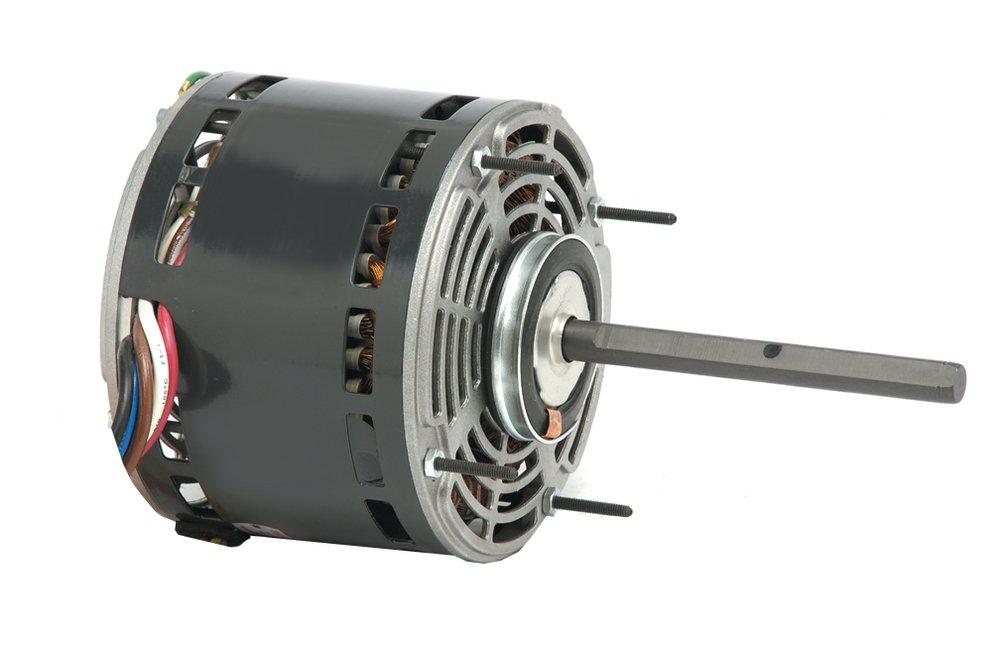

The U.S. Motors 1865 is a single-phase OAO band/hub/stud motor designed for HVAC applications. This motor features a powerful output of one-half horsepower and operates at 1200 RPM. It is suitable for various direct drive fan applications, ensuring reliable performance in residential and commercial settings.

• Full load amps: 6.5
• Voltage rating: 115
• Mounting options: belly band, band/hub/stud

Product Highlights

This HVAC motor includes thermal protection and is built for continuous duty. Its lightweight design and robust construction facilitate quick installation and maintenance.

Product Information

Standard Information

• Manufacturer: Nidec-US Motors
• Part Number: 1865

Technical Specifications

• Insulation: Class B
• Mounting: Belly Band, Band/Hub/Stud
• RPM: 1200
• Phase: Single Phase
• Service Factor: 1
• Weight: 19.0 LB
• Frame Size: 48
• Voltage Rating: 115 VAC
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Thermal Protection: Automatic Reset
