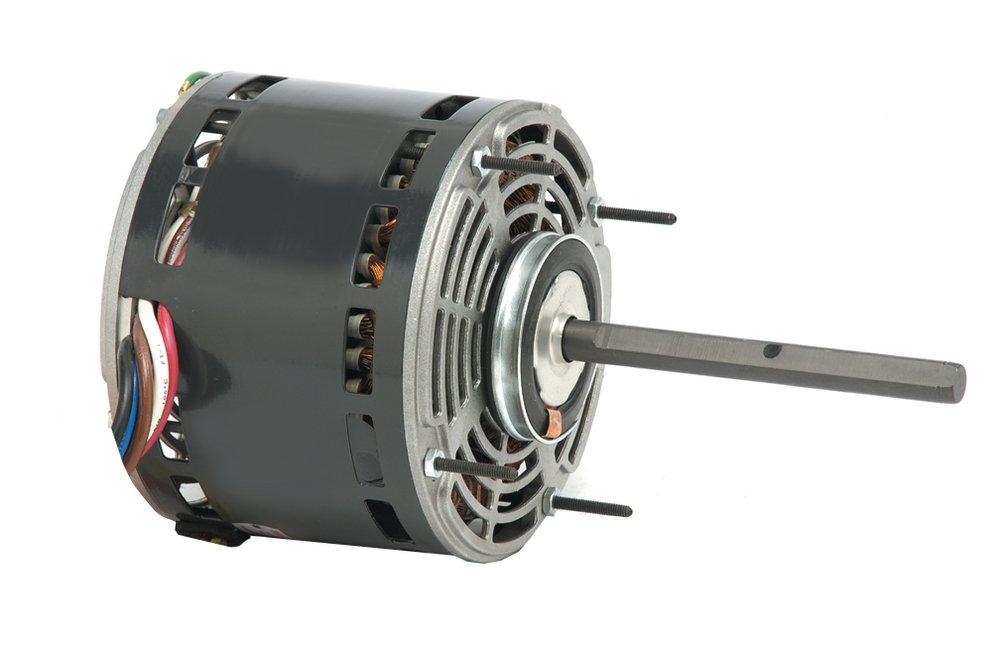

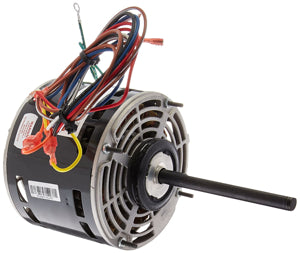

U.S. Motors 1863 HVAC Single Phase OAO Band/Hub/Stud Motor 1/4 HP

Product Description

The U.S. Motors 1863 is an HVAC single-phase OAO band/hub/stud motor designed for various applications. This motor features a rated horsepower of 1/4 and operates at a full load speed of 1200 RPM. It is suitable for direct drive fan systems and includes a belly band mounting option.

• 1/4 horsepower output
• Operates at 1200 RPM
• Single-phase motor

Product Highlights

This motor is ideal for HVAC systems, offering reliable operation and versatility in installation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 1863

Technical Specifications

• Poles: 6
• Phase: Single Phase
• Motor Application: Direct Drive Fan, HVAC
• Full Load RPM: 1075 RPM
• Voltage Rating: 115
• Mounting: Belly Band, Band/Hub/Stud
• Service Factor: 1
• No. of Speeds: 3
• Full Load Amps: 3.5
• C Dimension: 10.4 inches
• Thermal Protection: Automatic Reset
• Enclosure Designation: OAO - Open Air Over
• Insulation: B
• HP: 1/4
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Frame: 48, 48Y
• Hz: 60 Hz
• RPM: 1200 RPM
• Weight: 12.0 LB
