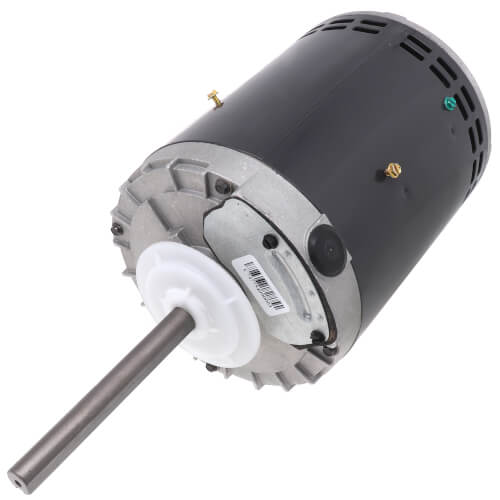

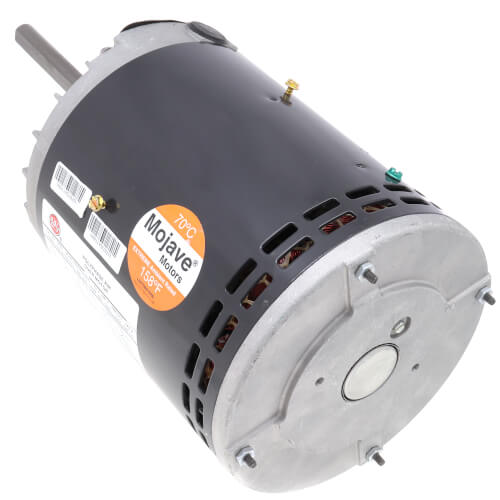

U.S. Motors 1818H | 1 HP | 1140 RPM | 208-230/460 | OAO | 56Z

Product Description

The U.S. Motors 1818H is a 1 horsepower AC motor designed for continuous duty applications. This motor operates at a speed of 1140 RPM and is compatible with 208-230/460 voltage ratings, making it suitable for various industrial uses, especially in HVAC systems.

• Powerful 1 HP motor
• Designed for HVAC applications
• Operates at 1140 RPM

Product Highlights

The 1818H motor features a three-phase design and an open air over (OAO) enclosure for efficient cooling. It provides flexibility with dual voltage ratings and integrates an automatic reset thermal overload protector for added safety.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 1818H

Technical Specifications

• Phase: Three Phase
• RPM: 1140
• Voltage Rating: 208-230/460
• Full Load Amps: 4.2/2.1
• Frame: 56Z
• Enclosure Designation: OAO - Open Air Over
• Weight: 27.34 LB
• Insulation: Class F
• Duty: Continuous Duty
• Thermal Protection: Automatic Reset
• Poles: 6
• Hz: 60
