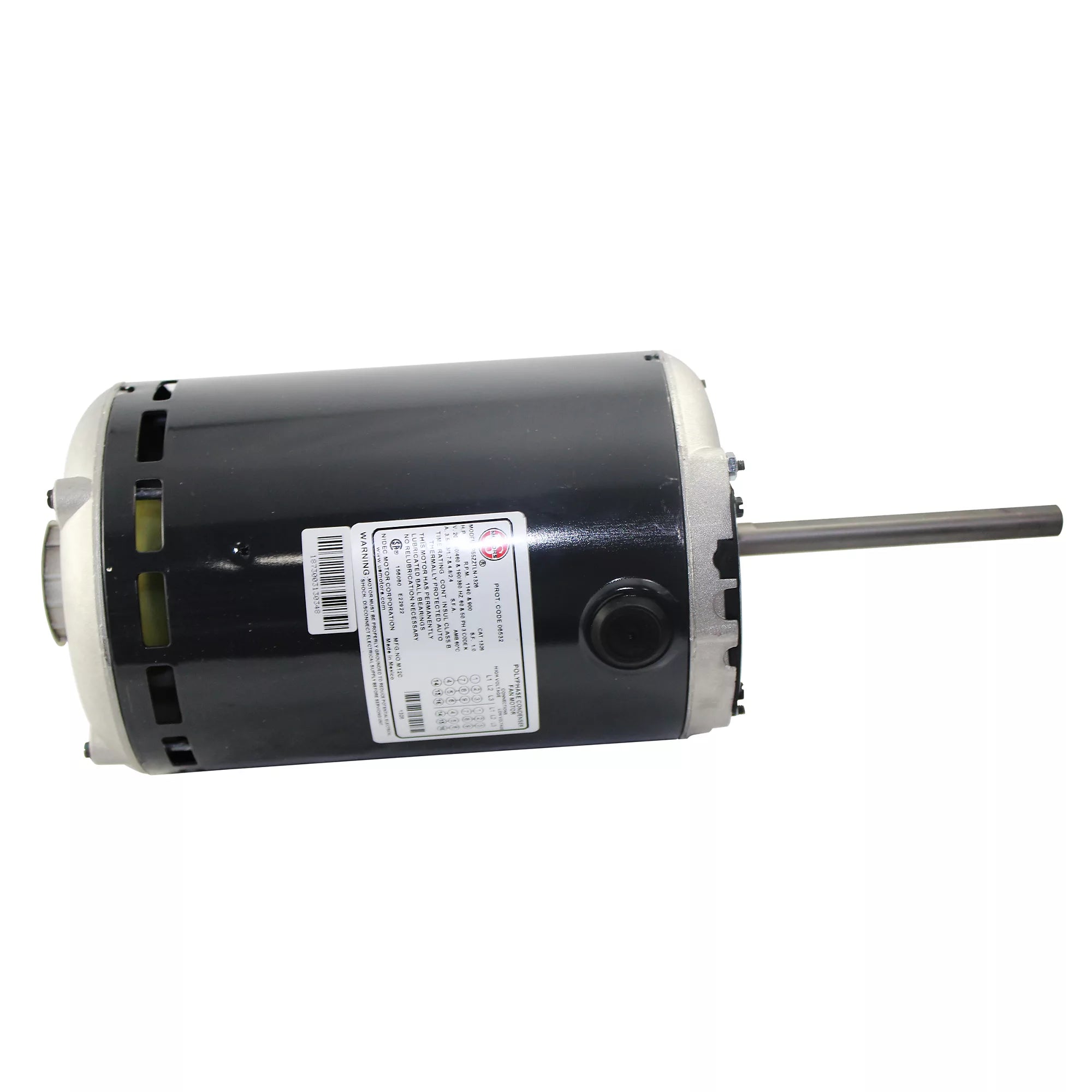

U.S. Motors 1326 1 HP 900-1140 RPM 190/460 VAC Condenser Motor

Product Description

The U.S. Motors 1326 model is a robust 1 HP condenser motor, designed to operate at 900-1140 RPM and suitable for both 190/460 VAC installations. This motor is engineered for continuous duty applications in a variety of HVAC systems.

• Operates efficiently at 900-1140 RPM with a power capacity of 1 HP.
• Features reversible rotation and ball bearing type for flexibility and durability.
• Constructed as a polyphase motor with a NEMA frame size of 48Y.

Product Highlights

The U.S. Motors 1326 condenser motor is built to provide reliable service and performance, featuring a three-phase design and an open motor enclosure. With a service factor of 1.0, it supports a wide voltage range and is equipped with a 6.5-inch shaft.

Product Information

Standard Information

• Manufacturer: U.S. Motors
• Model: 1326

Technical Specifications

• RPM: 900-1140
• Voltage: 190/460 VAC
• Power: 1 HP
• Phase: Three
• Frame Size: 48Y
• Bearing Type: Ball
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.5 inches
• Service Factor: 1.0
