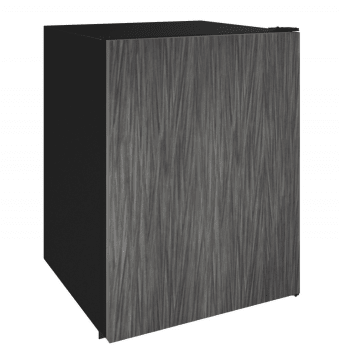

U-line u-ada24rint-00a Ada Undercounter Refrigerator

Product Description

The U-LINE u-ada24rint-00a is a 24-inch ADA-compliant undercounter refrigerator designed for residential and light-commercial installations where accessibility standards must be met. The unit delivers 5.3 cubic feet of usable storage and uses a digital convection cooling system to pull interior temperatures down quickly and hold them consistently in the 34 degrees F to 45 degrees F range. Four chrome-plated wire shelves and interior LED lighting keep contents visible and accessible. The panel-ready door accepts a custom panel to match surrounding cabinetry, making this unit a fit for finish-integrated kitchen and bar builds. Installation is handled by licensed contractors or experienced trade installers.

This refrigerator is built for undercounter applications in residential kitchens, wet bars, ADA-compliant spaces, and hospitality environments where counter-height access is required. The factory-installed door lock secures contents against unauthorized access. Sabbath Mode and Star-K certification make this unit appropriate for observant households. The field-reversible door swing allows the installer to match the hinge orientation to the layout without ordering a separate configuration. The unit runs on a standard 115-volt, 15-amp circuit, which is common in residential construction.

Key Features

• ADA compliant at 32 inches overall height — meets accessibility requirements for undercounter installations
• Digital convection cooling system maintains temperatures between 34 degrees F and 45 degrees F
• Holds up to 70 12-oz bottles or 140 12-oz cans
• Four chrome-plated wire shelves with interior LED lighting for clear visibility
• Field-reversible door swing configurable on site — no additional parts required
• Star-K certified with Sabbath Mode for kosher-observant applications
• Energy Star qualified — meets efficiency standards for residential appliances

Compatibility

Panel-ready configuration accepts a custom cabinet panel to match surrounding millwork. Designed for undercounter installation in ADA-compliant residential and light-commercial cabinetry built to standard 24-inch-depth specifications.

Installation Notes

Installation should be performed by a qualified contractor or appliance installer familiar with local building codes and ADA accessibility requirements. Power down the circuit at the breaker before making any electrical connections. The unit requires a dedicated 115-volt, 15-amp grounded outlet — do not use an extension cord or ungrounded receptacle. Verify door swing direction before final placement, as reversing the hinge after cabinet integration requires pulling the unit from the opening.

Technical Specifications

• Total Capacity: 5.3 cu ft
• Temperature Range: 34 degrees F to 45 degrees F
• Bottle Capacity (12 oz): 70 bottles
• Can Capacity (12 oz): 140 cans
• Electrical Requirements: 115V / 15A
• Overall Width: 24 inches
• Overall Depth: 23.25 inches
• Overall Height: 32 inches
• Shipping Weight: 117 pounds
• Shelving: 4 chrome-plated wire shelves
• Lighting: Interior LED
• Control Type: Digital touch pad
• Door Lock: Yes, factory installed
• Door Swing: Field reversible
• ADA Compliant: Yes
• Star-K Certified: Yes
• Energy Star Qualified: Yes

Standard Information

• Brand: U-LINE
• Manufacturer Part Number: u-ada24rint-00a
