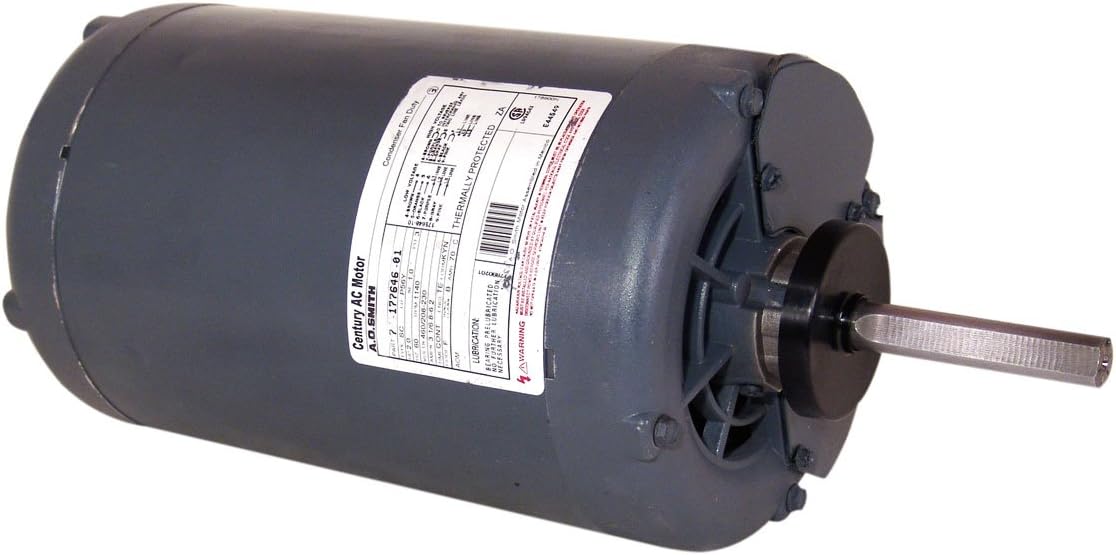

Century H699 Condenser 2-HP 1140 RPM 6-1/2 Inch Frame Diameter

Product Description

The Century H699 is a condenser fan motor with a six-and-a-half inch frame diameter. This model operates at two horsepower and has a rotational speed of one thousand one hundred forty RPM. It is designed for use with three-phase systems, providing efficient performance for HVAC applications. The motor runs on voltages of two hundred eight to two hundred thirty or four hundred sixty volts and requires a current of six point eight amps.

• Electrically reversible design
• Open drip-proof protection
• Features double sealed ball bearings

Product Highlights

This motor is suitable for continuous duty with thermal protection and operates efficiently under various environmental conditions.

Product Information

Standard Information

• Brand: Century
• MPN: H699

Technical Specifications

• Frame Diameter: 6.5 inches
• Horsepower: 2 hp
• Voltage: 208-230/460 volts
• RPM: 1140
• Amperage: 6.8 amps
• Weight: 43.4 pounds
• Height: 8.25 inches
• Width: 8.75 inches
• Length: 21.75 inches
