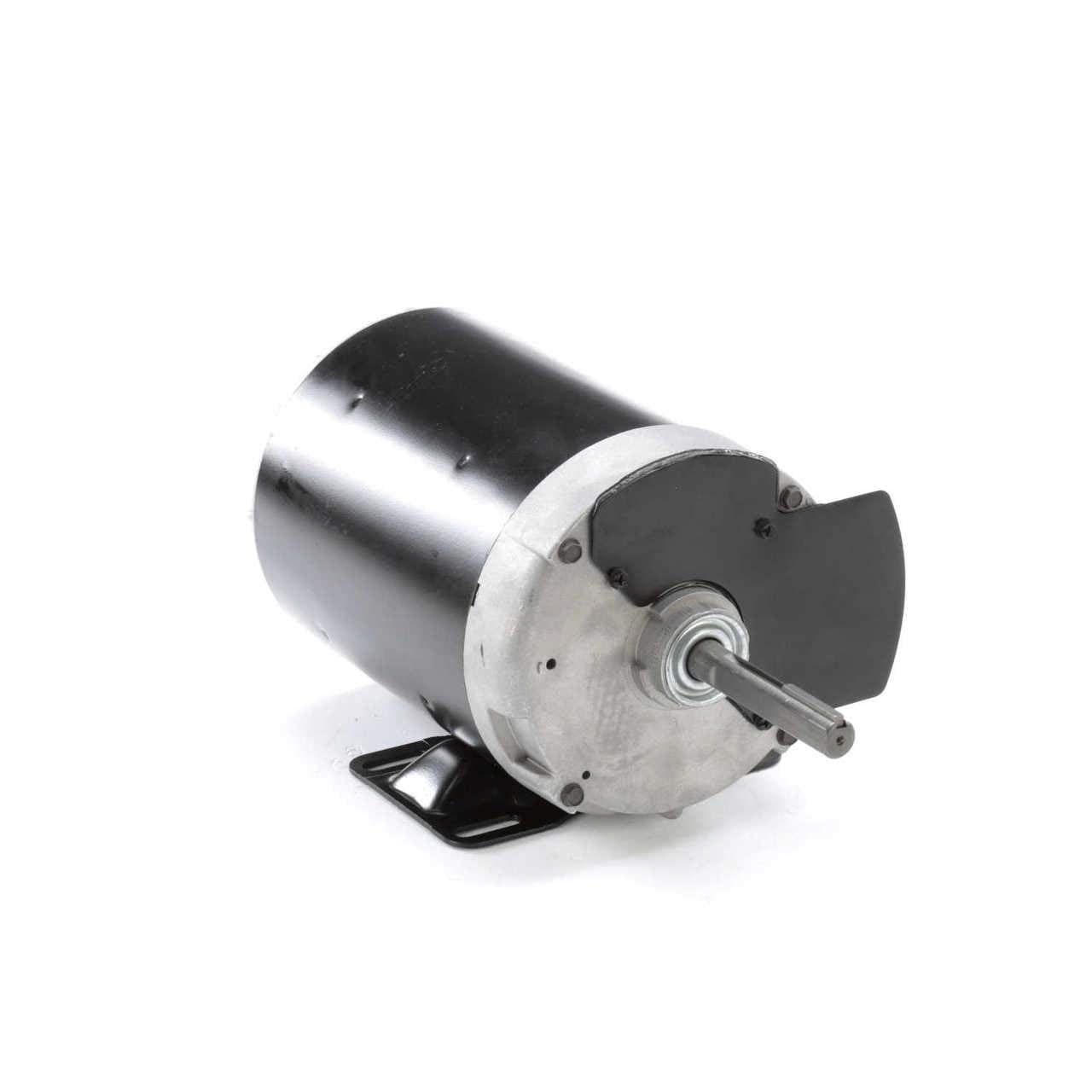

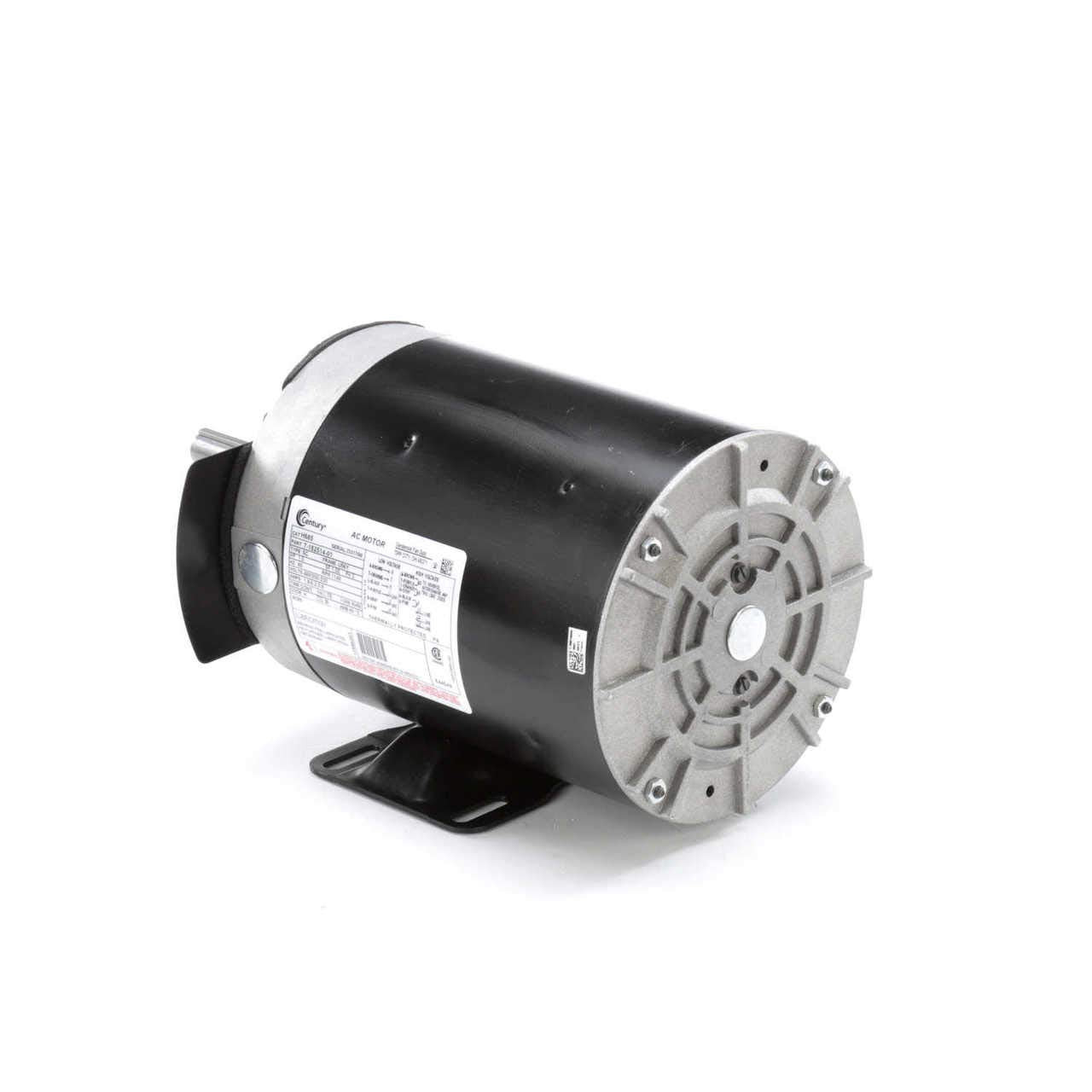

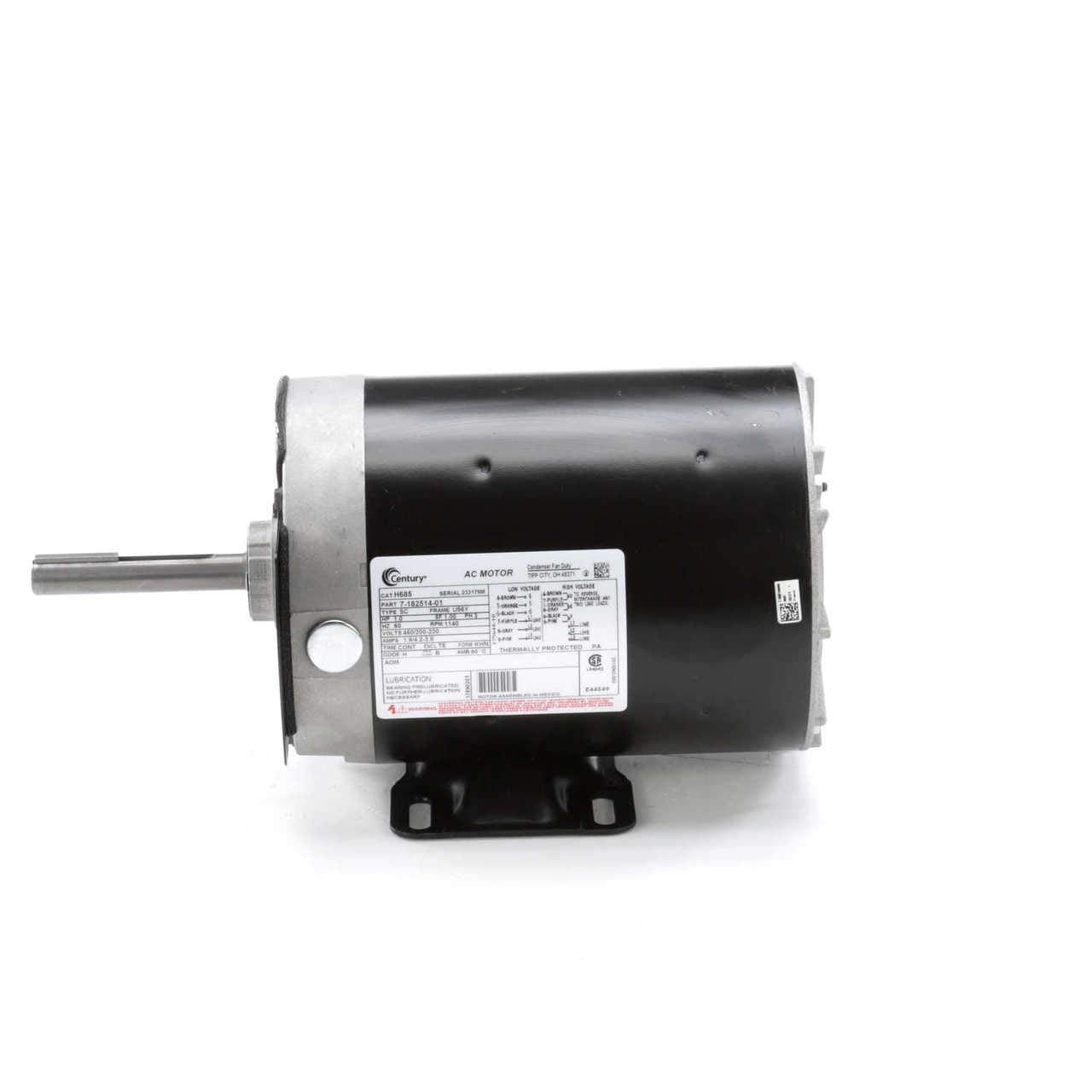

Century H685 Condenser Fan Motor 1 HP 1140 RPM 3-Phase

Product Description

The Century H685 Condenser Fan Motor is a reliable motor designed for HVAC applications. This 1 horsepower motor operates at 1140 RPM and is suitable for single-speed operations.

• Three-phase motor with 200-230/460 voltage compatibility
• Features auto protector and reversible shaft rotation
• Ball bearings and totally enclosed air-over design

Product Highlights

Designed for use in HVAC systems, the Century H685 Condenser Fan Motor is built for durability and efficiency. Its ball bearings and totally enclosed air-over design ensure long-lasting performance.

Product Information

Standard Information

• Brand: Century
• MPN: H685
• Product Type: Electric Motor

Technical Specifications

• Motor Design: 3-Phase
• Motor Enclosure Design: Totally Enclosed Air-Over
• Horsepower: 1 HP
• RPM: 1140
• Voltage: 200-230/460
• Shaft Orientation: Up
• Features: Reversible, Auto Protector, Base Mounted
• Full Load Amps: 4.2-3.8/1.9
• Shaft Length: 3.5 inches
• Overall Length: 12.875 inches
• Insulation Class: B
• Service Factor: 1.0
• Bearings: Ball
• Mounting Type: Rigid Base
• Phase: 3
