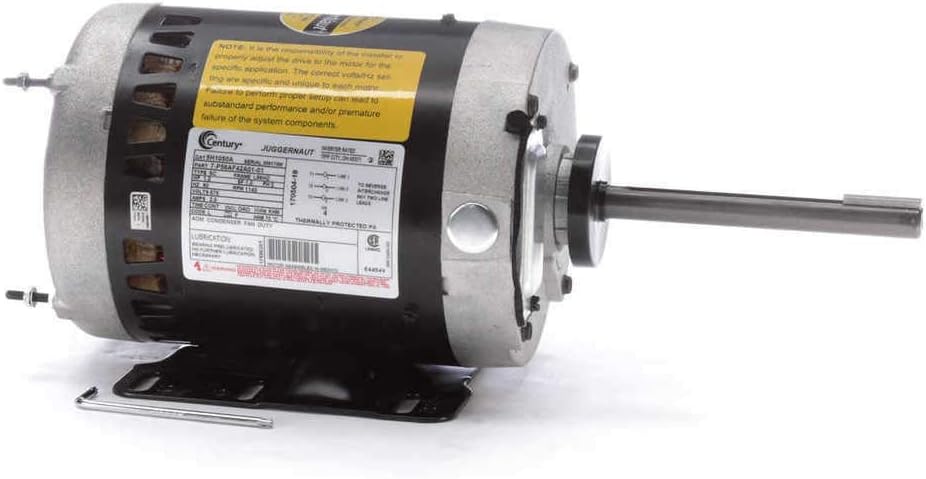

Century H1050A Condenser Fan Motor 1 HP 1140 RPM 60 Hz

Product Description

The Century H1050A Condenser Fan Motor is a robust solution for HVAC systems requiring dependable air circulation. With its 1 HP power and an operating speed of 1140 RPM, this motor delivers efficient performance for various applications.

• Motor Design: 3-Phase
• Operating Speed: 1140 RPM
• Continuous Duty Cycle

Product Highlights

This motor is designed for condenser fans and is suitable for both residential and commercial HVAC systems. It features an open air-over enclosure and is capable of both clockwise and counterclockwise rotations.

Product Information

Standard Information

• Brand: Century
• MPN: H1050A
• Application: HVAC/R Systems

Technical Specifications

• Horsepower: 1 HP
• Speed: 1140 RPM
• Voltage: 208-230/460 V
• Phase: 3
• Enclosure: Open Air-Over
• Motor Bearings: Ball
• Shaft Dia.: 5/8 inches
• Shaft Length: 6-1/16 inches
• Overall Length: 16-9/16 inches
• Motor Mounting Type: Rigid Base
• Insulation Class: F
• Max. Ambient Temp.: 70 Degrees C
• Full Load Amps: 4.4-4.0/2.2
• Country of Origin: Mexico
