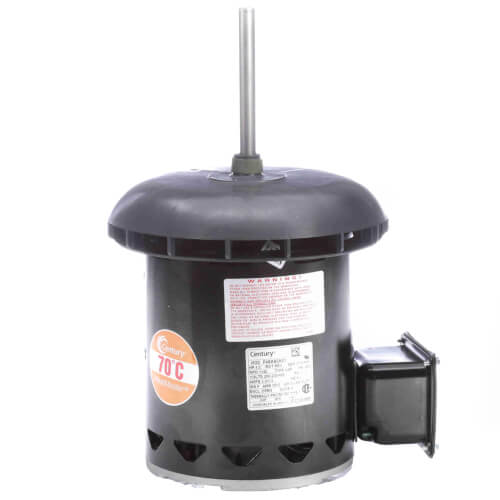

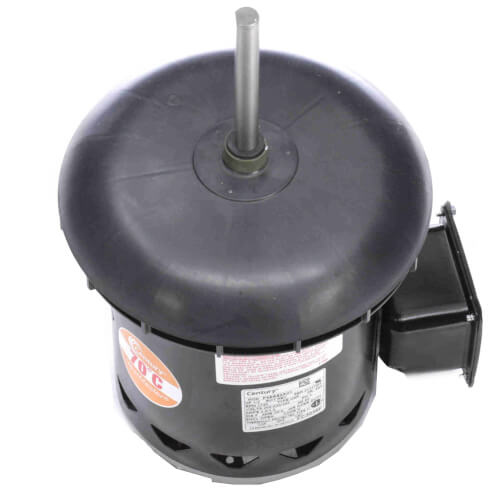

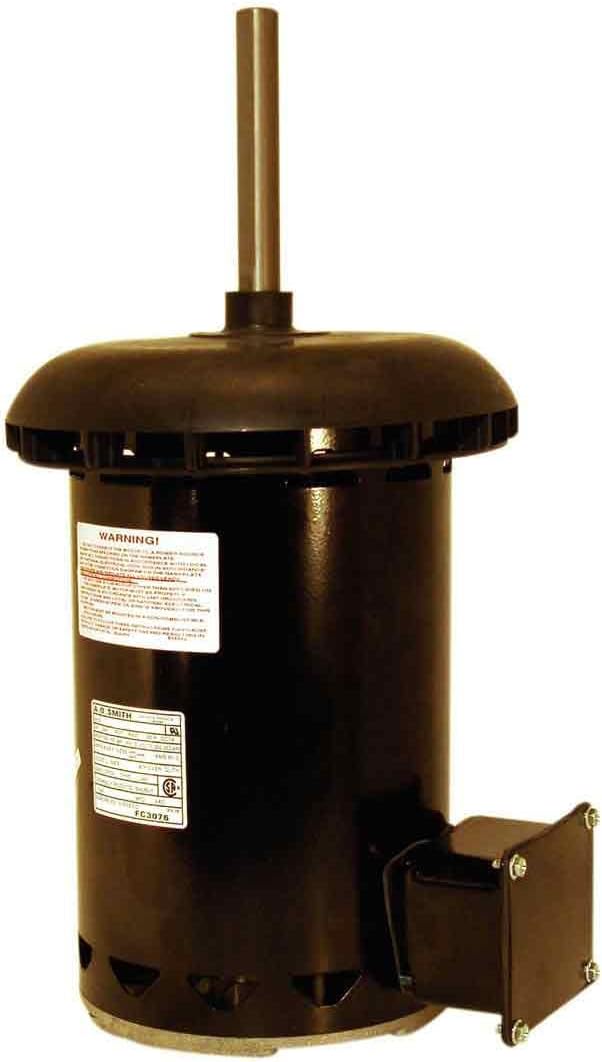

Century FC3056F Fan Canopy 5.6-Inch Frame Diameter 1/2-HP 1140-RPM 200-230 460-Volt 3-Amp Ball Bearing Motor

Product Description

The Century FC3056F Fan Canopy motor is a versatile and reliable solution for various industrial applications. Designed with a 5.6-inch frame diameter and powered by a 1/2-HP motor, this unit operates at 1140 RPM with voltage options of 200-230 and 460 volts. Ideal for demanding environments, this motor is built with ball bearing construction to ensure durability and long-lasting performance.

• 5.6-inch frame diameter
• 1/2-HP motor
• Operates at 1140 RPM

Product Highlights

This fan canopy motor is designed for efficiency in industrial settings, offering versatility and robust construction. It features a reversible rotation, automatic overload protection, and is suitable for vertical shaft up orientation.

Product Information

Standard Information

• Brand: Century
• MPN: FC3056F

Technical Specifications

• Speed: 1140 RPM
• Voltage: 200-230/460 Volts
• Horsepower: 0.5 HP
• Frame: 48Y
• Diameter: 5.6 inches
• Phase: 3
• Amperage: 3.0/1.5 A
• Enclosure: Open Air Over
• Insulation Class: F
• Bearings: Ball
• Mounting: Round / Belly Band
• Rotation: Reversible
• Max Ambient Temperature: 158°F
• Weight: 19 pounds
