Marathon Motors GT0065 3 PH ODP Globetrotter General Purpose Motor 230/460V 1775 RPM 25 HP

Product Description

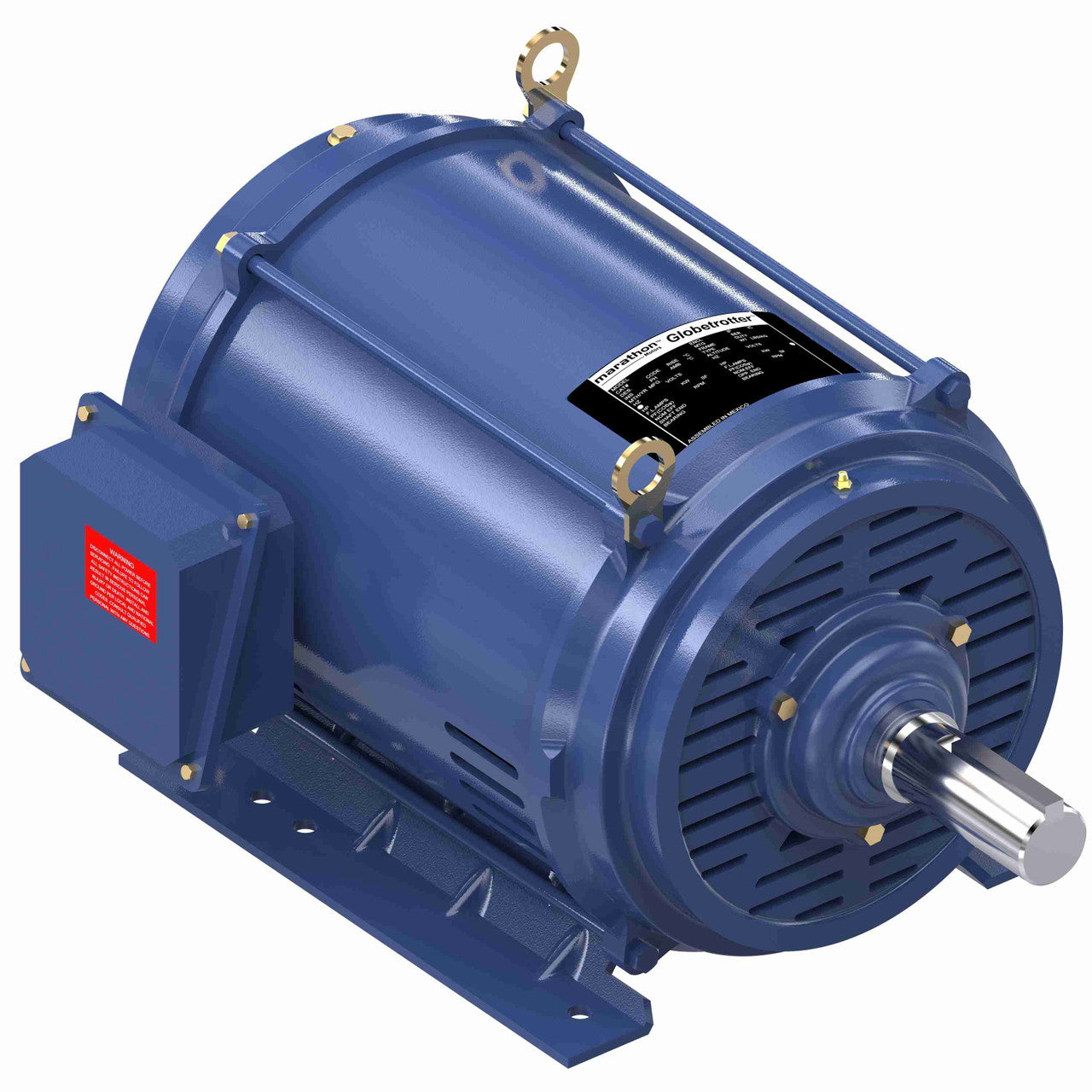

The Marathon Motors GT0065 is designed for industrial applications, offering a 3 Phase Open Drip Proof (ODP) Globetrotter general purpose motor. This powerful unit features a 25 horsepower output at 1775 RPM, suitable for a range of tough environments. It comes with a 284T frame and operates on a dual voltage of 230/460V, ensuring versatility and efficiency.

• 3 Phase power configuration for efficient energy utilization.
• Durable 284T frame for robust industrial use.
• Inverter duty 10:1 Variable Torque and 2:1 Constant Torque capabilities.

Product Highlights

This motor is engineered to meet or exceed NEMA Premium® efficiency and is compliant with EISA2007 standards. Featuring a Class F insulation, it supports continuous operation and reversibility from F1 to F2 assembly. The motor's design includes 12 leads, allowing multiple starting methods including WYE-DELTA, part winding on low voltage, or across-the-line.

Technical Specifications

• Power Output: 25 HP
• Speed: 1775 RPM
• Voltage: 230/460V
• Phase: 3
• Frame: 284T
• Insulation Class: F
• Weight: 384 pounds
