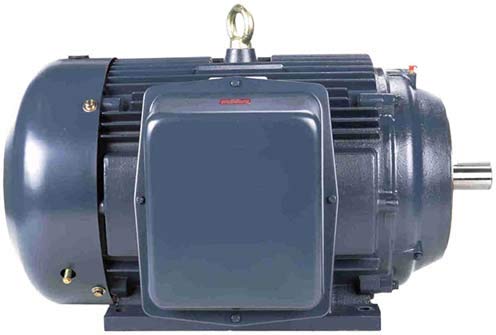

Marathon Motors GT0077 General Purpose 50 HP 230/460V Motor

Product Description

The Marathon Motors GT0077 General Purpose Motor is engineered for reliable and efficient performance in diverse applications. This three-phase motor features a rugged 326T frame constructed of high-quality materials capable of handling continuous duty operations.

• Robust 50 HP engine with a rotational speed of 1780 RPM
• Designed for versatility with a reversible shaft rotation
• Effective in environments requiring a drip-proof configuration

Product Highlights

Noteworthy for its dual voltage compatibility, the Marathon Motors GT0077 operates seamlessly on either 230 or 460V setups, making it an adaptable solution for complex power environments. Its energy efficiency is affirmed by a 1.15 service factor, complementing its NEMA premium performance standards. Exceptionally crafted for longevity, the motor supports a multitude of industrial applications, including but not limited to HVAC systems and large-scale mechanical assemblies.

Product Information

Standard Information

• Enclosure Type: Open Dripproof
• Service Factor: 1.15

Technical Specifications

• Horsepower: 50 HP
• Voltage: 230/460V
• Frame Size: 326T
• Phase: Three
• Shaft Diameter: 2.125 inches
• Shaft Length: 5.25 inches
• Rotation: Reversible
• RPM: 1780
