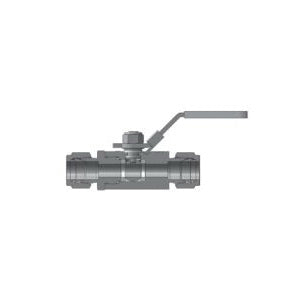

TYLOK SS-GP4-S4S4 Stainless GP Ball Valve 1/4 CS Tube x 1/4 CS Tube, Single Ferrule System

Product Description

TYLOK SS-GP4-S4S4 is a stainless steel GP ball valve designed for general-purpose applications. This valve is ideal for connecting and controlling flow in piping systems with a quarter inch tube end style. It is constructed from high-quality materials to ensure durability and reliability.

• Pressure rating up to 2000 psi.
• Temperature rating of 400 degrees Fahrenheit.
• Constructed with 316 stainless steel for longevity.

Product Highlights

This product allows bi-directional flow and features built-in actuator mounting holes for automation. It has a compact design with high flow capacity and a locking handle for secure operation.

Product Information

Standard Information

• Manufacturer: TYLOK INTERNATIONAL INC
• Type: General Purpose

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Stainless Steel
• Nominal Size: 1/4 in
• Orifice Size: 0.2 in
• Inlet to Outlet Length: 2.95 in
• Top to Inlet Center: 1.38 in
• Softgoods Material: PTFE
• Pressure Rating: 2000 psi
• Temperature Rating: 400 deg F
• Trim Material: 316 Stainless Steel Stem and TFM 1600 PTFE Seat
