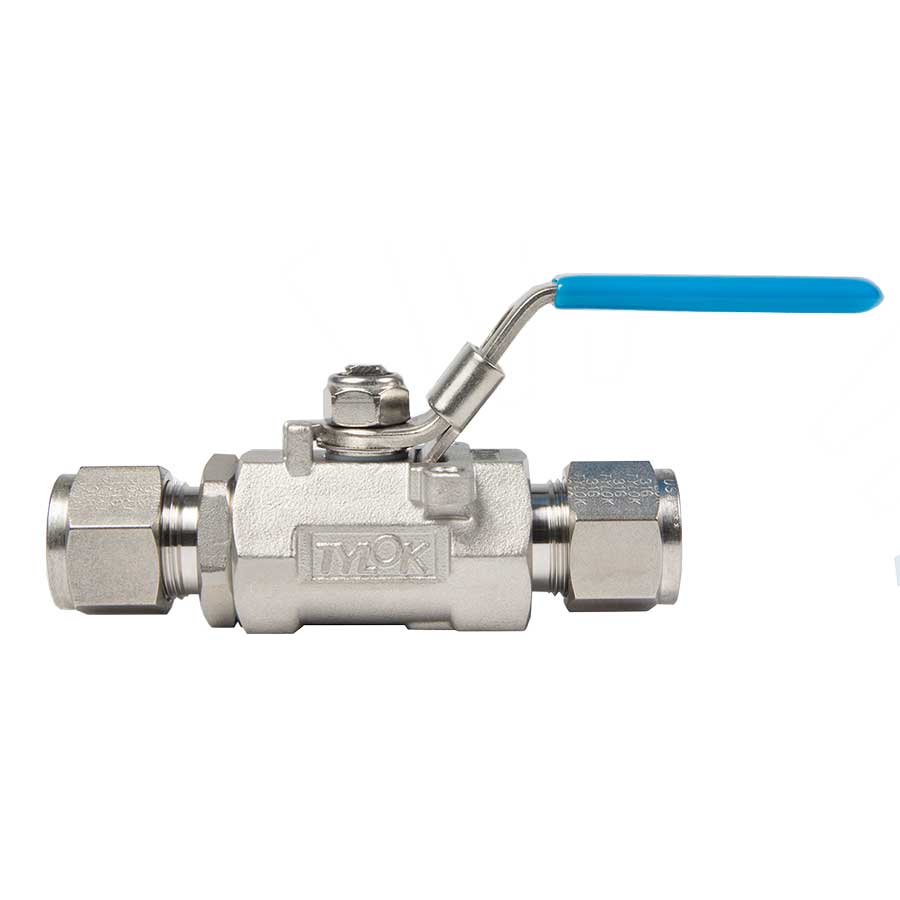

TYLOK SS-GP4-D4D4 Stainless GP Ball Valve 1/4 CBC Tube x 1/4 CBC Tube

Product Description

The TYLOK SS-GP4-D4D4 is a stainless steel GP ball valve with a quarter inch CBC tube connection. This valve is designed for general-purpose applications requiring reliable flow control.

• Compact design for versatile installation
• Bi-directional flow capability
• Locking handle for secure positioning

Product Highlights

This stainless steel ball valve handles pressures up to 2000 psi and temperatures as high as 400 degrees Fahrenheit. Ideal for pneumatic and hydraulic applications, it features a built-in actuator mounting design for easy automation.

Product Information

Standard Information

• Manufacturer: TYLOK INTERNATIONAL INC
• Type: General Purpose

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Stainless Steel
• Nominal Size: 1/4 in
• Orifice Size: 0.2 in
• Pressure Rating: 2000 psi
• Series: GP Series
• Temperature Rating: 400 degrees F
• Inlet to Outlet Length: 2.95 in
• Top to Inlet Center: 1.38 in
• Trim Material: 316 Stainless Steel Stem and TFM 1600 PTFE Seat
• End Style: Tube
• Softgoods Material: PTFE
