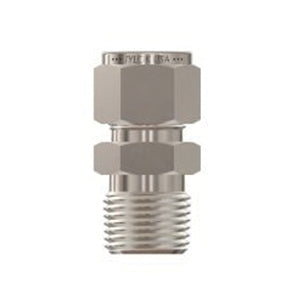

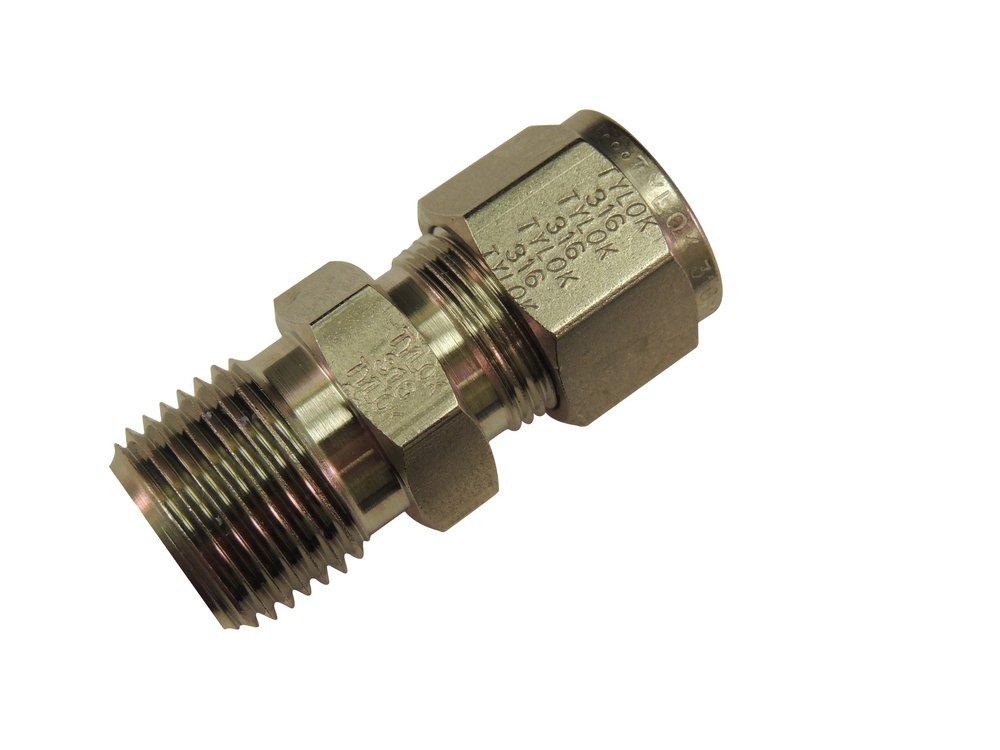

Tylok SS-8-DMC-8 CBC-Lok 1/2 in Compression x MPT Stainless Steel Male Connector

Product Description

The Tylok CBC-Lok 1/2 inch Compression x MPT Stainless Steel Male Connector, MPN SS-8-DMC-8, is designed for efficient fluid transfer in various piping applications. This connector features a double ferrule design, which provides secure and leak-proof connections. It is suitable for use with tubes and meets rigorous quality standards.

• Interchangeable with Swagelok and Parker A-Lok fittings
• Constructed from durable 316 stainless steel
• Compatible with high-pressure applications up to 3800 psig

Product Highlights

This connector is built for reliability and performance. The double ferrule mechanism ensures a tight seal, preventing leaks even under high pressure. It is ideal for HVAC, plumbing, or industrial applications.

Product Information

Standard Information

• Brand: Tylok International
• Manufacturer: Tylok International

Technical Specifications

• MPN: SS-8-DMC-8
• Nominal Size: 1/2 inch
• Connection Type: Tube x MNPT
• Hex Size: 7/8 inch
• Length: 1.929 inches
• Material: 316 Stainless Steel
• Series: DMC
• Pressure Rating: 3800 psig
• Temperature Rating: -40 to 400 degrees Fahrenheit
