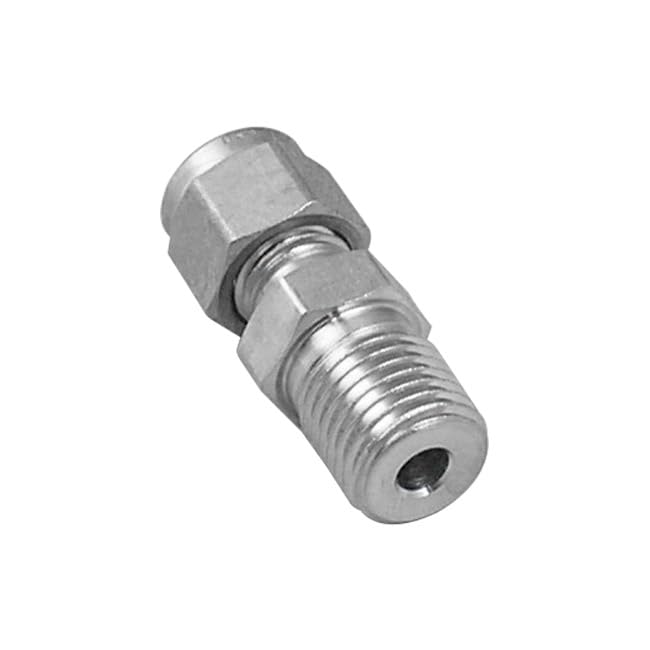

Tylok SS-8-DMC-6 Stainless 1/2 CBC Tube x 3/8 MNPT Straight Male Connector

Product Description

Tylok SS-8-DMC-6 is a stainless steel connector that features a half inch CBC tube to three eighths inch MNPT straight design. This connector is part of the CBC-Lok series and is engineered for secure connections in various piping and fitting applications.

• 1/2 CBC Tube x 3/8 MNPT straight configuration
• Double ferrule design for leak-proof sealing
• Heat code traceable with high corrosion resistance

Product Highlights

This connector is made from high-quality 316L stainless steel, ensuring longevity and durability. It is designed to withstand extreme temperatures ranging from negative three hundred twenty-five degrees Fahrenheit to twelve hundred degrees Fahrenheit, making it suitable for various environments.

Product Information

Standard Information

• Brand: Tylok
• Manufacturer: Tylok International

Technical Specifications

• Material: 316 Stainless Steel
• Nominal Size: 1/2 x 3/8 in
• Connection Type: Tube x MNPT
• Hex Size: 13/16 in
• Length: 1.71 in
• Maximum Temperature: -40 to 400 degrees Fahrenheit
• Standards: ASTM A276/ASME-SA-479/Type 316-SS
