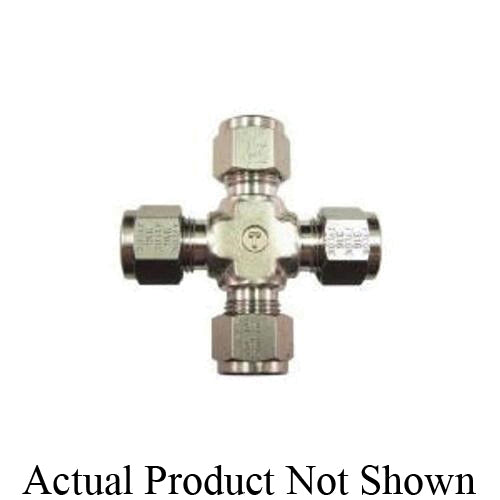

Tylok SS-8-DCR Stainless 1/2 CBC Tube x 1/2 CBC Tube x 1/2 CBC Tube x 1/2 CBC Tube Cr

Product Description

The Tylok SS-8-DCR is a stainless steel CBC-lok union cross designed for reliable piping connections. This product features a double ferrule design that enhances the connection strength and provides total component interchangeability. Made from high-quality 316 stainless steel, it delivers durability and corrosion resistance necessary for demanding applications.

• Double ferrule swaging action
• Heat code traceable for quality assurance
• Interchangeable with models 810-4 and 8ECR8

Product Highlights

This union cross is suitable for various plumbing and piping applications, ensuring secure joints in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Tylok International Inc
• Manufacturing Type: Domestic

Technical Specifications

• Length: 2.829 inches
• Nominal Size: 1/2 inches
• Material: 316 Stainless Steel
• Fitting/Connector Type: Cross
• Series: DCR
• End Style: Tube
• Hardness: 90 Rb
• Standards/Approval: ASTM A276/ASME-SA-479, ISO 9001:2008
