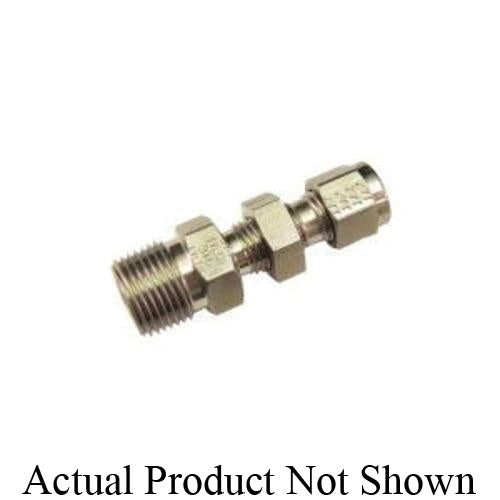

Tylok SS-8-DBHMP-8 CBC-Lok® 1/2 x 2-71/100 in. OD Tube x MNPT 316 Stainless Steel Bulkhead Double Connector

Product Description

The Tylok SS-8-DBHMP-8 is a CBC-Lok® Bulkhead Double Connector designed for tube OD of one-half inch to MNPT connections. This connector features a double ferrule system for a secure and reliable fitting. It is made from 316 stainless steel, which provides corrosion resistance and durability in various environments.

• Nominal size of one-half inch
• Length of two point seven one inches
• Hex size of fifteen-sixteenths inch

Product Highlights

This product is ideal for applications requiring a robust and traceable connection. It is heat code traceable and meets ASTM material standards for performance and safety.

Product Information

Standard Information

• Manufacturer: Tylok International Inc
• Fitting Type: Double Ferrule Connector

Technical Specifications

• Material: 316 Stainless Steel
• Nominal Size: 1/2 in
• End Style: Tube x MNPT
• Hex Size: 15/16 in
• Length: 2.71 in
• Domestic/Import: Domestic
