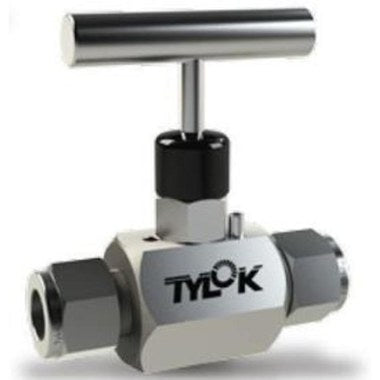

TYLOK SS-8-6DD-8 Stainless Screwed Bonnet Needle Valve 1/2 CBC Tube x 1/2 CBC Tube

Product Description

The TYLOK SS-8-6DD-8 stainless screwed bonnet needle valve is designed for precise control of fluid flow. This valve is constructed from 316 stainless steel, ensuring durability and resistance to corrosion. It features CBC-Lok tube ends for easy compatibility with other tube fittings.

• Nominal Size: 1/2 inches
• Pressure Rating: 10000 psi
• Temperature Range: -10 to 200 degrees Fahrenheit

Product Highlights

The valve is suitable for various applications including fluid control in industrial settings. The 316 stainless steel body guarantees long-term performance.

Product Information

Standard Information

• Manufacturer: TYLOK INTERNATIONAL INC
• Part Number: SS-8-6DD-8

Technical Specifications

• Body Material: 316 Stainless Steel
• End Style: CBC-Lok Tube
• Inlet to Outlet Length: 3.3 inches
• Nominal Size: 1/2 inches
• Pressure Rating: 10000 psi
• Softgoods Material: FKM
• Temperature Rating: -10 to 200 degrees Fahrenheit
• Top to Inlet Center: 3.16 inches
• Trim Material: 316 Stainless Steel
