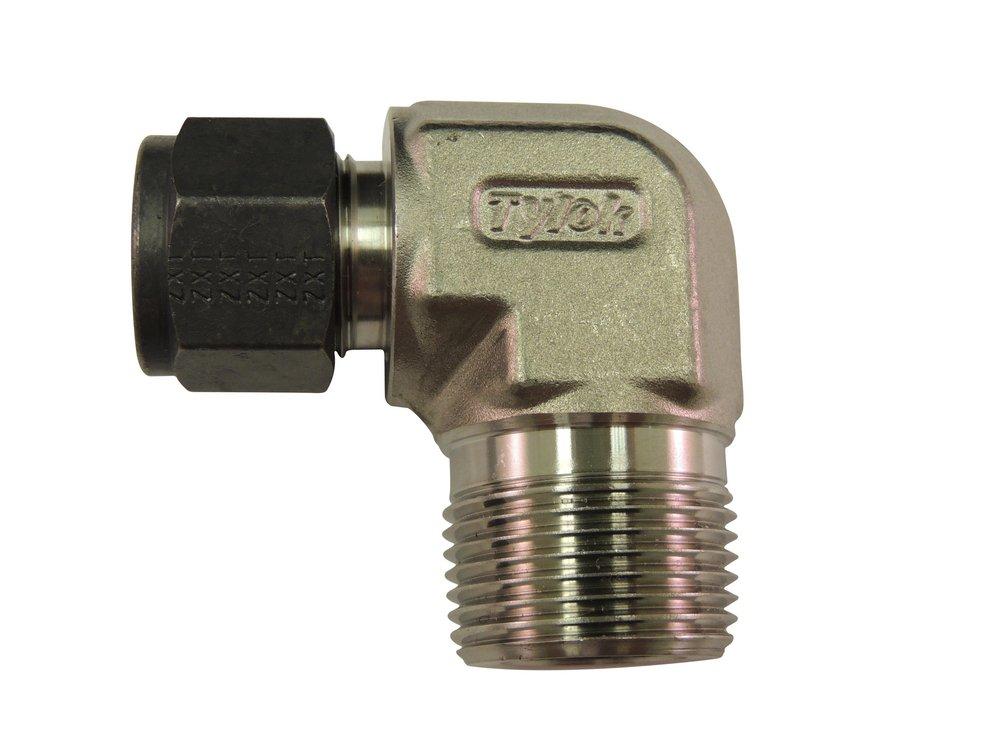

Tylok SS-6-SME-8 CS-Lok 3/8 x 1/2 in OD Tube x NPT 316L Stainless Steel Reducing Single 90 Degree Elbow

Product Description

Tylok SS-6-SME-8 is a stainless steel reducing single 90 degree elbow fitting designed for pipe applications. This fitting is compatible with CS-Lok tubing and has a nominal size of three-eighths inch by one-half inch. The elbow is made from 316L stainless steel, ensuring durability and resistance to corrosion.

• End style: Tube x MNPT
• Temperature rating: -20 to 1000 degrees Fahrenheit
• Single ferrule swaging action system

Product Highlights

The Tylok elbow fitting is suitable for various piping systems, providing secure connections in plumbing and HVAC applications.

Product Information

Standard Information

• Manufacturer: Tylok International Inc
• Part No: TSS6SME8

Technical Specifications

• Material: Stainless Steel
• Nominal Size: 3/8 x 1/2 in
• Fitting/Connector Type: 90 deg Elbow
• Temperature Rating: -20 to 1000 degrees Fahrenheit
• Domestic/Import: Domestic
• Series: SME
• Type: Single Ferrule
