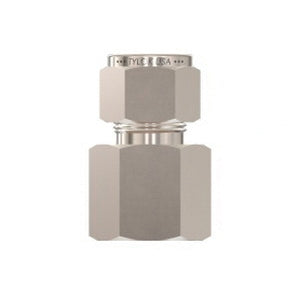

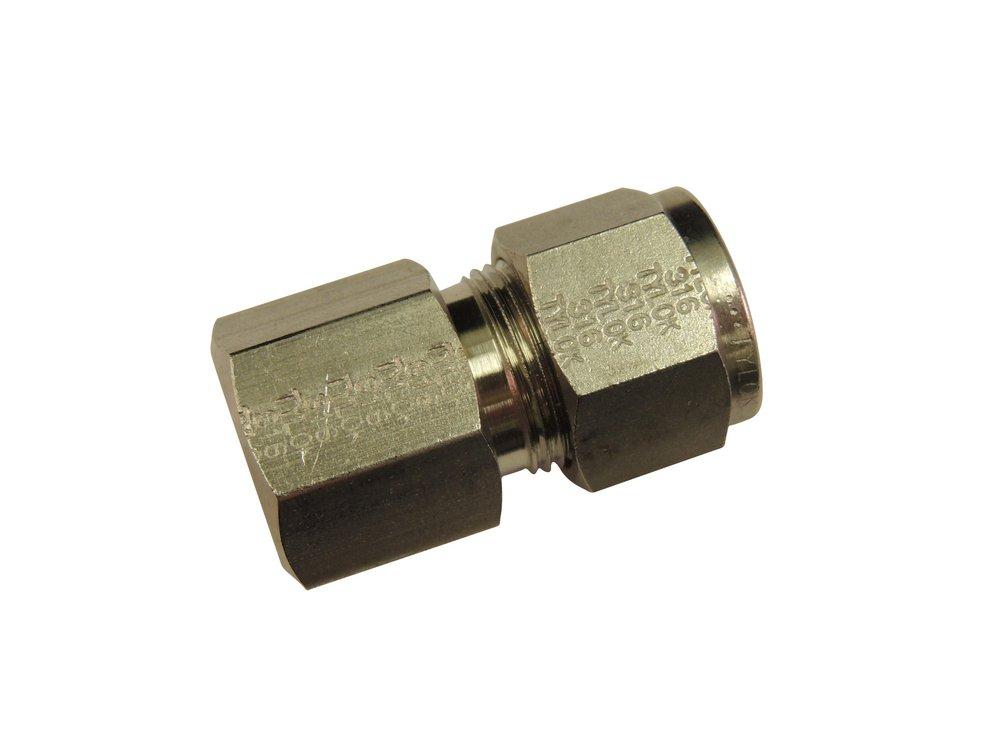

Tylok SS-6-DFC-4 DFC 3/8 x 1/4 in. OD x NPT Stainless Steel Female Connector

Product Description

The Tylok SS-6-DFC-4 is a DFC series stainless steel female connector designed for various piping applications. This connector features a nominal size of three-eighths by one-quarter inches and utilizes a tube by NPT connection style. The component is made from high-quality 316 stainless steel, ensuring durability and resistance to corrosion. This product is suitable for high-pressure applications due to its robust construction and heat code traceability.

• Double ferrule swaging action
• Total component interchangeability
• Heat code traceable

Product Highlights

This connector provides secure and efficient fluid transfer in industrial settings and is compatible with multiple piping systems.

Product Information

Standard Information

• Brand: Tylok
• MPN: SS-6-DFC-4

Technical Specifications

• Connection Size: 3/8 x 1/4 in
• Connection Type: Tube x FNPT
• Length: 1.48 in
• Material: 316 Stainless Steel
• Pressure Rating: 5300 psig
• Series: DFC
• Temperature Rating: -40 to 400 deg F
