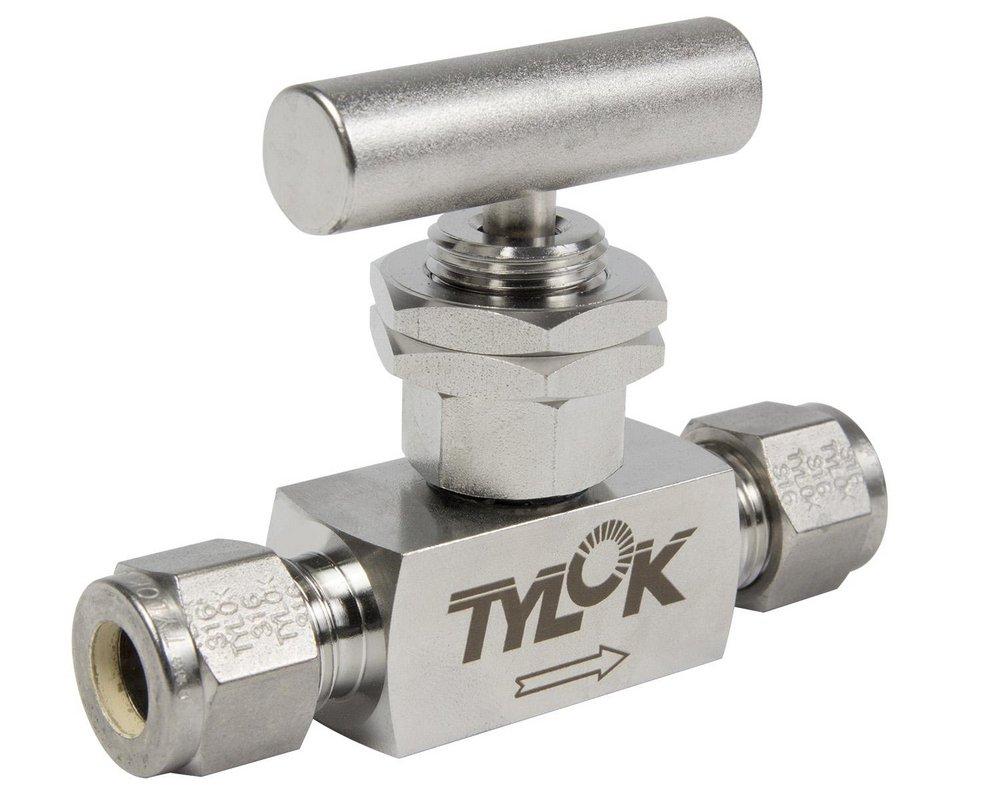

Tylok SS-6-6DD-6 3/8 in. Stainless Steel Tube Needle Valve

Product Description

The Tylok SS-6-6DD-6 is a 3/8 inch stainless steel tube needle valve designed for precise fluid control. This needle valve is constructed from durable 316 stainless steel, ensuring long service life and reliability in various applications.

• Compatible with CBC-Lok tube connections.
• Rated for a maximum pressure of 10,000 psi.
• Operates effectively within a temperature range of -10 to 200 degrees Fahrenheit.

Product Highlights

This needle valve features FKM O-rings and is suitable for critical fluid control tasks. Its compact design allows for efficient installation in restricted spaces.

Product Information

Standard Information

• Manufacturer: Tylok International Inc
• Part Number: SS-6-6DD-6

Technical Specifications

• Body Material: 316 Stainless Steel
• Inlet to Outlet Length: 3.08 inches
• Nominal Size: 3/8 inches
• Pressure Rating: 10,000 psi
• Softgoods Material: FKM
• Temperature Rating: -10 to 200 degrees Fahrenheit
• Top to Inlet Center: 2.13 inches
• Trim Material: 316 Stainless Steel
