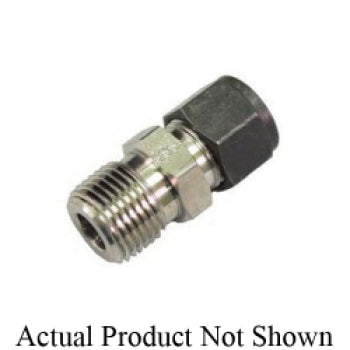

TYLOK SS-5-SMC-4 Stainless 5/16 CS Tube x 1/4 MNPT Straight, Single Ferrule System

Product Description

The TYLOK SS-5-SMC-4 is a stainless steel male connector designed for use in piping systems. This fitting is part of the CS-Lok series and features a single ferrule system. It connects a five-sixteenth inch tube to a one-quarter inch MNPT. The connector is durable and suitable for a wide range of temperatures.

• Temperature range from -20 to 1000 degrees F
• Designed for tube to MNPT connection
• Constructed from stainless steel for durability

Product Highlights

This connector offers total component interchangeability along with heat code traceability. It is constructed to withstand vibration, making it ideal for dynamic environments.

Product Information

Standard Information

• Manufacturer: TYLOK INTERNATIONAL INC
• Type: Single Ferrule

Technical Specifications

• Nominal Size: 5/16 x 1/4 in
• Material: Stainless Steel
• End Style: Tube x MNPT
• Length: 1.54 in
• Hex Size: 9/16 in Body
• Temperature Rating: -20 to 1000 deg F
• Series: SMC
• Domestic/Import: Domestic
